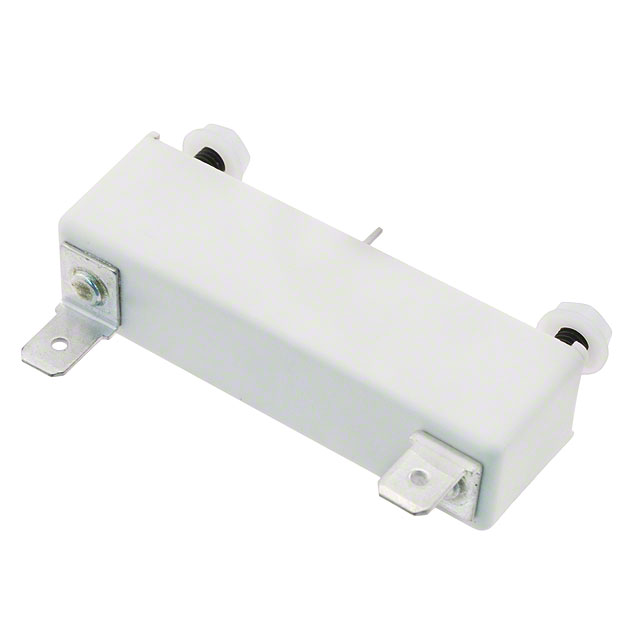

DAR70510S
ActiveSensata Technologies
RELAY REED SPST-NO 3A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DAR70510S
ActiveSensata Technologies
RELAY REED SPST-NO 3A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAR70510S |
|---|---|
| Coil Current | 179 mA |
| Coil Resistance | 28 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Rhodium (Rh) |
| Contact Rating (Current) | 3 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 3.7 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 2 ms |
| Switching Voltage | 1000 VDC, 1000 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 57.59 | |
Description
General part information
DAR70510 Series
RELAY REED SPST-NO 3A 5V
Documents
Technical documentation and resources
No documents available
