1241.6823.1121000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPST 12A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPST 12A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6823.1121000	1241.6823 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	DPST	SPST, DPST
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	12 A	12 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination Type, Color	Red, LED	LED, Blue, Red
Illumination Voltage (Nominal)	1.9 VDC	1.9 - 3.7 VDC
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	Off-On	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSHBUTTON SPST 12A 250V

Part	Electrical Life	Illumination Type, Color	Ingress Protection	Termination Style	Type	Circuit	Illumination Voltage (Nominal)	Actuator Type	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Mounting Type	Switch Function	Current Rating (Amps)	Voltage Rating - DC
SCHURTER Inc. 1241.6823.1114000	50000 Cycles	Blue, LED	IP64 - Dust Tight, Water Resistant	Quick Connect - 0.187" (4.7mm)	Anti-Vandal, Illuminated	SPST	3.7 VDC	Button, Round	250 V	No Marking	Silver	100000 Cycles	85 °C	-20 C	19.1 mm	Panel Mount, Front	Off-On	12 A	30 V
SCHURTER Inc. 1241.6823.1121000	50000 Cycles	LED, Red	IP64 - Dust Tight, Water Resistant	Quick Connect - 0.187" (4.7mm)	Anti-Vandal, Illuminated	DPST	1.9 VDC	Button, Round	250 V	No Marking	Silver	100000 Cycles	85 °C	-20 C	19.1 mm	Panel Mount, Front	Off-On	12 A	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

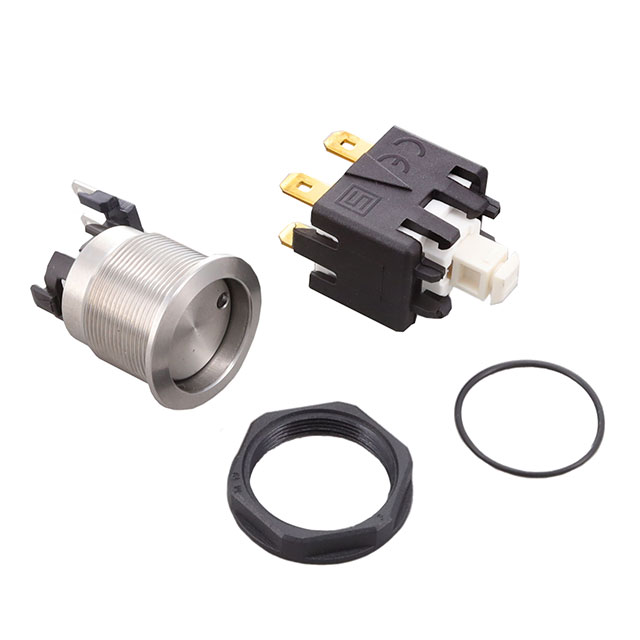

Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
