H8MMH-2418G

Active

Assmann WSW Components

DIP CABLE - HDM24H/AE24G/HDM24H

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM24H/AE24G/HDM24H

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDM24H/AE24M/HDM24H

Part	Number of Rows	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Usage	Length [x]	Length [x]	Cable Termination	Number of Positions	Shielding	Color	Pitch - Connector	Pitch - Connector
Assmann WSW Components H8MMH-2436M	2	Gold	DIP to DIP, Reversed	0.76 Ám	30 Áin	0.05 "	1.27 mm	Board In, Socket (0.1")	3 ft	914.4 mm	IDC	24	Unshielded	Multiple, Ribbon	0.1 in	2.54 mm
Assmann WSW Components H8MMH-2418G	2	Gold	DIP to DIP, Reversed	0.76 Ám	30 Áin	0.05 "	1.27 mm	Board In, Socket (0.1")	1.5 ft	457.2 mm	IDC	24	Unshielded		0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

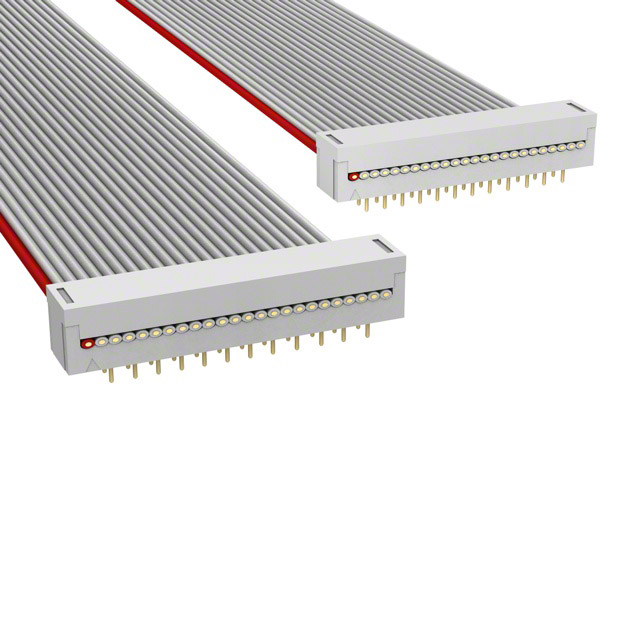

24 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
