HM6902NL
ObsoletePulse Electronics
COMMON MODE CHOKES / FILTERS
HM6902NL
ObsoletePulse Electronics
COMMON MODE CHOKES / FILTERS
Description
General part information
HM6902NL

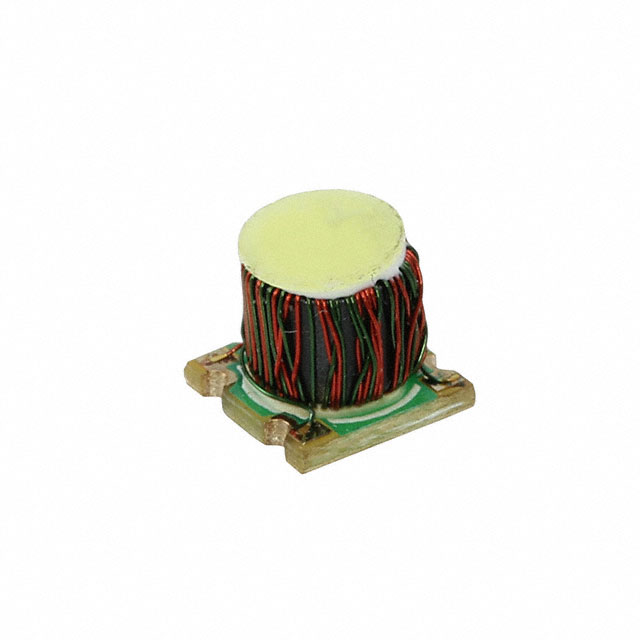

2 Line Common Mode Choke Surface Mount DCR
Technical Specifications
Parameters and characteristics for this part
| Specification | HM6902NL |
|---|---|
| Height (Max) | 0.21 in |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Vertical |
| Pad Count | 4 PC Pad |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.2 in |
