1SNK505215R0000

Active

TE Connectivity ENTRELEC

AUT SNK SCREW

Deep-Dive with AI

Search across all available documentation for this part.

1SNK505215R0000

Active

TE Connectivity ENTRELEC

AUT SNK SCREW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SNK505215R0000	1SNK Series

Color	Gray	White, Gray, Brown, Black, Blue, Purple, Yellow, Green, Red, Transparent, Orange
Current - IEC	29 A	6.3 - 415 A
Current - UL	20 A	10 - 230 A
Disconnect Type	-	Switch, Knife, Fuse, Lever, Open, Component, Removable Plug
Features	Diode	Interlocking (Side), LED Indicator, Diode
For Use With/Related Products	-	SNK Series, SNK Series Test Plugs, SNK, ZK, SNK, ZS Series, ZS Series, SNK, SNK, ZK Series, 5.2mm Wide Terminal Blocks, ZDS, RGW, ZDK, ZDP, ZK Series, 16mm Wide Terminal Blocks, Ferrules, ZK, ZP, ZDK Series, SNK, ZDS Series
Fuse Type	-	20 - 32 mm
Fuse Type	-	5 - 6.3 mm
Fuse Type	-	5mm x 25mm, 5mm x 20mm
Height (Max)	-	1.98 - 2.72 in
Height (Max)	-	50.29 - 69.1 mm
Height (Max)	-	50.55 mm
Housing Color	-	Gray, Green, Yellow, Blue
Housing Material	-	Polyamide (PA), Nylon
Insulation Height	-	36.32 mm
Insulation Height	-	1.43 in
Insulation Height	-	39.37 mm
Insulation Height	-	1.55 in
Legend	-	Letters, O, Letters, S, L2, L1, W1, W, Letters, G, Letters, K, Numbers, 1 through 100, Numbers, 1 through 10, 101 through 110, V2, U1, Letters, I, Numbers, 5, Letters, N, Numbers, 9, W3, Blank, U2, Letters, M, Ground Symbol, Numbers, 51 through 60, Numbers, 101 through 200, Symbol, ~, Letters, A, Letters, E, Letters, U, Letters, Q, 11 through 20, U3, L3, 21 through 30, Numbers, 2, Numbers, 3, Letters, R, Letters, J, 201 through 300, Letters, F, Letters, X, +24V, N, PE, 401 through 500, Letters, L, Numbers, 301 through 400, Numbers, 0, Letters, H, 151 through 160, Letters, D, W2, V1, V3, Letters, P, -, Letters, Z, +48V, Numbers, 121 through 130, Letters, B, Numbers, 0 through 9, Numbers, 801 through 900, Letters, T, Symbol, =, Numbers, 6, Numbers, 4, 81 through 90, Letters, Y
Legend	-	40 - 1000
Legend	-	31 - 901
Legend	-	-48 - 8 V
Length	-	3.46 - 3.69 in
Length	-	80.26 - 93.73 mm
Length	-	81.03 - 107.95 mm
Length	-	3.16 - 4.25 in
Length - Overall	-	1.97 - 5.9 in
Length - Overall	-	50 - 150 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	-	Free Hanging (In-Line), DIN Rail
Number of Levels	2	1 - 2
Number of Levels	Connected	Connected, 1 Grounded
Number of Positions	4	1 - 50
Operating Temperature	-	-55 °C
Operating Temperature	-	110 °C
Pitch	-	0.205 - 1.024 in
Pitch	-	5.2 - 26 mm
Positions Per Level	-	1 - 12
Ratcheting	-	Ratchet
Stripping Length	10 mm	10 - 38 mm
Stripping Length	-	12 mm
Style	-	Flat Pins, Screw - Full Thread, Screw In
Terminal - Width	-	22 mm
Terminal - Width	-	32 - 36 mm
Terminal - Width [y]	5.2 mm	5.2 - 26 mm
Termination Style	Screw	Push In, Spring, Screw, Screwless - Spring Cage, Tension Clamp, Screw - Rising Cage Clamp, Plug Receptacles
Tip Type	-	Slotted
Tool Type	-	Screwdriver, Hand Crimper
Type	Feed Through	Snap In, Label, Feed Through, Disconnect, Plug, Female Sockets, Marker Holder, Test Plug Adapter, Terminal Block, Cross Connection, Shield Connector, Ground, Earth, Terminal Block, DIN Rail, End Plate, Plug Connection, Separator, Rail Type, Test Plug, Cover, End Stop, Earth/Neutral, Ground, Component Plug, Spacer, Label, Adhesive
Voltage - IEC	800 V	1 - 800 kV
Voltage - UL	-	300 - 1000 V
Voltage - UL [custom]	300 V	150 - 300 V
Wire Entry Location	-	Side Entry
Wire Gauge or Range - AWG	-	2/0
Wire Gauge or Range - AWG	-	0 - 500 AWG
Wire Gauge or Range - AWG [Max]	24 AWG	2 - 28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	0 - 12 AWG
Wire Gauge or Range - mm˛	-	0.2 - 6 mm˛
Wire Gauge or Range - mm˛	-	4 - 300 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 120 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 - 35 mm²
Wire Strip Length	-	10.5 - 12.5 mm

1SNK Series

SNK PRE-PRINTED

...

Part	Legend	For Use With/Related Products	Pitch [x]	Pitch [x]	Color	Type	Number of Levels	Current - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Stripping Length	Termination Style	Material - Insulation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Material Flammability Rating	Voltage - IEC	Terminal - Width [y]	Stripping Length [x]	Disconnect Type	Voltage - UL [custom]	Number of Positions	Wire Strip Length	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Insulation Height	Insulation Height	Mounting Type	Fuse Type [y]	Fuse Type [x]
TE Connectivity ENTRELEC 1SNK156152R0000	Letters, O	SNK Series	0.236 in	6 mm	White	Label, Snap In
TE Connectivity ENTRELEC 1SNK156192R0000	Letters, S	SNK Series	0.236 in	6 mm	White	Label, Snap In
TE Connectivity ENTRELEC 1SNK706031R0000						Feed Through	1	32 A	26 AWG	10 AWG	600 V	12.5 mm	Push In, Spring	Nylon, Polyamide (PA)	0.5 mm²	6 mm²	30 A	UL94 V-0	1 kV	6 mm
TE Connectivity ENTRELEC 1SNK508315R0000					Gray	Disconnect	1	25 A	24 AWG	6 AWG			Screw	Nylon, Polyamide (PA)	0.2 mm²	10 mm²	25 A	UL94 V-0	630 V	8 mm	12 mm	Knife, Switch	300 V	2
TE Connectivity ENTRELEC 1SNK148061R0000	L2	SNK Series	0.205 in	5.2 mm	White	Label, Snap In
TE Connectivity ENTRELEC 1SNK806717R0000					Gray	Plug, Female Sockets	1	30 A	26 AWG	10 AWG			Screwless - Spring Cage, Tension Clamp		0.5 mm²	6 mm²	30 A		1 kV					4	12.5 mm	4	-55 °C	110 °C	Polyamide (PA), Nylon	36.32 mm	1.43 in	Free Hanging (In-Line)
TE Connectivity ENTRELEC 1SNK148052R0000	L1	SNK Series	0.205 in	5.2 mm	White	Label, Snap In
TE Connectivity ENTRELEC 1SNK505064R0000					Brown	Feed Through	1	32 A	24 AWG	12 AWG	600 V	10.5 mm	Screw	Nylon, Polyamide (PA)	0.2 mm²	4 mm²	20 A	UL94 V-0	1 kV	5.2 mm				2
TE Connectivity ENTRELEC 1SNK900605R0000		SNK Series			Gray	Marker Holder
TE Connectivity ENTRELEC 1SNK706410R0000					Gray	Disconnect	1	6.3 A	26 AWG	12 AWG		11 mm	Push In, Spring	Nylon, Polyamide (PA)	0.2 mm²	4 mm²	16 A	UL94 V-0	500 V	6 mm		Fuse, Lever	300 V	2									20 mm	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.81
		10	$ 5.83
		25	$ 5.57
		50	$ 5.21

Description

General part information

1SNK Series

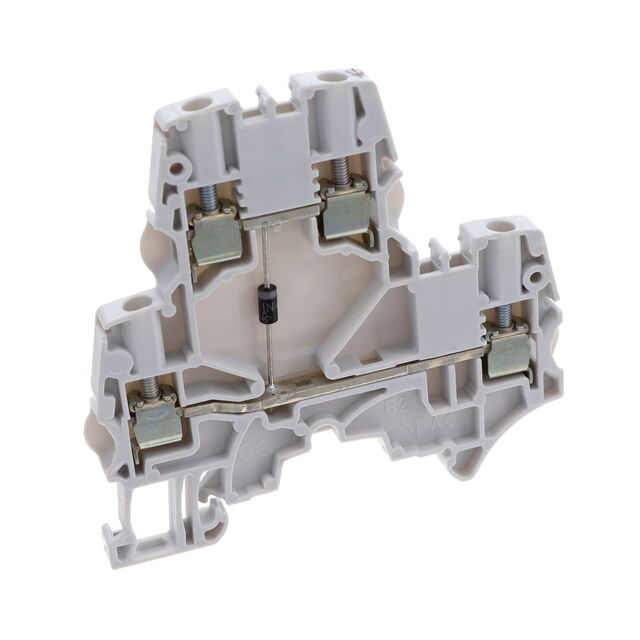

Terminal Block Connector 4 Position Feed Through Gray 12-24 AWG

Documents

Technical documentation and resources

No documents available
