633-026-663-542

Active

EDAC Inc.

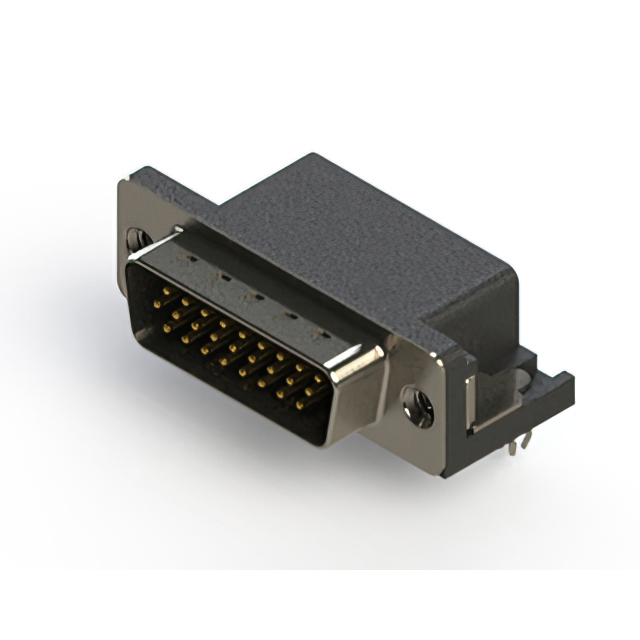

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-026-663-542

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-026-663-542

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

633-026 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Shell Material, Finish	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Backset Spacing	Backset Spacing	Features	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Material Flammability Rating	Dielectric Material	Contact Type	Number of Rows	Number of Positions	Connector Style	Connector Type	Termination	Current Rating (Amps)	Contact Material	Contact Finish Thickness
EDAC Inc. 633-026-663-013	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	85 °C	-55 °C	8.89 mm	0.35 in	Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy
EDAC Inc. 633-026-663-541	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (Unthreaded)	125 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy
EDAC Inc. 633-026-363-552	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (4-40)	125 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy
EDAC Inc. 633-026-263-510			Board Edge Right Angle Through Hole	Nickel Plated Steel	4-40	125 °C	-55 °C	8.89 mm	0.35 in	Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy	Flash
EDAC Inc. 633-026-263-031			Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (Unthreaded)	85 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy	Flash
EDAC Inc. 633-026-263-053			Board Edge Right Angle Through Hole	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	85 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy	Flash
EDAC Inc. 633-026-663-542	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (4-40)	125 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy
EDAC Inc. 633-026-263-030			Board Edge Right Angle Through Hole	Nickel Plated Steel	4-40	85 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy	Flash
EDAC Inc. 633-026-263-045			Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (M3)	85 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy	Flash
EDAC Inc. 633-026-363-551	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Nickel Plated Steel	Housing/Shell (Unthreaded)	125 °C	-55 °C	8.89 mm	0.35 in	Board Lock Grounding Indents Mounting Brackets Shielded	2	(DA A) High Density	Gold	UL94 V-0	Polyester Thermoplastic	Signal	3	26	D-Sub High Density	Male Pins Plug	Solder	3 A	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 9.92
Newark	Each	50	$ 10.44
		100	$ 9.94
		250	$ 9.70
		500	$ 9.35

Description

General part information

633-026 Series

26 Position D-Sub, High Density Plug, Male Pins Connector
