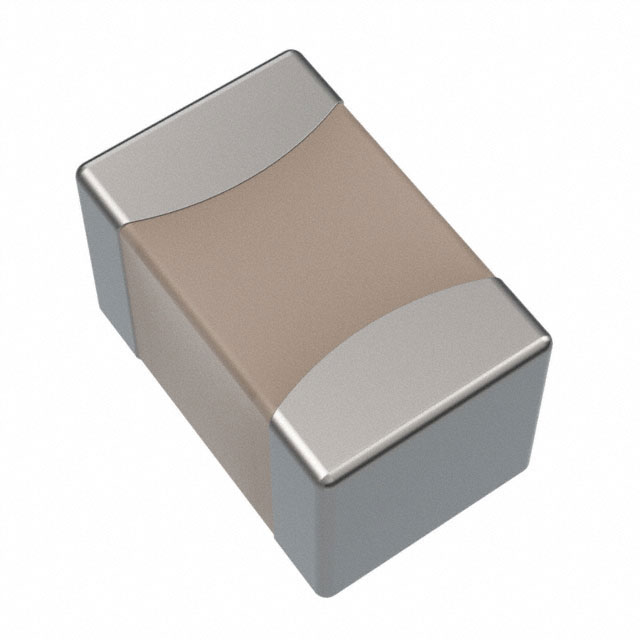

CML0603X7R333KT50V
ActiveStackpole Electronics Inc
CAP CERAMIC 0.033UF 50V X7R 10% PAD SMD 0603 125°C T/R
CML0603X7R333KT50V
ActiveStackpole Electronics Inc
CAP CERAMIC 0.033UF 50V X7R 10% PAD SMD 0603 125°C T/R
Description
General part information
CML0603X7R333KT50V
0.033 µF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CML0603X7R333KT50V |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.033 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.035 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 V |
