Description
General part information

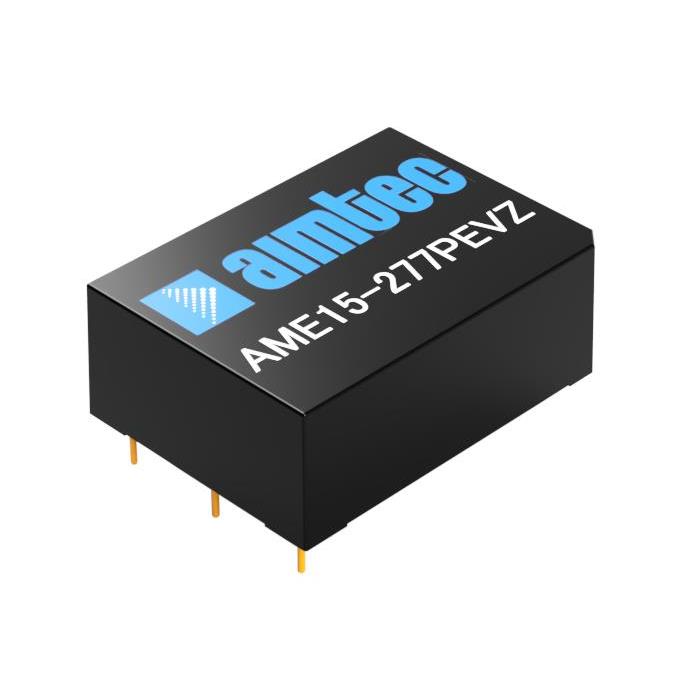

AME15-5S277PEVZ
Enclosed AC DC Converters 1 Output 5V 2.85A 85 ~ 305 VAC, 100 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AME15-5S277PEVZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 2.85 A |
| Efficiency | 79 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 10-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.89 in |
| Size / Dimension Length | 2.44 in |
| Size / Dimension Width | 1.77 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Output 1 | 5 V |
| Weight | 0.209 lb |
