100820NP

Active

LAPP

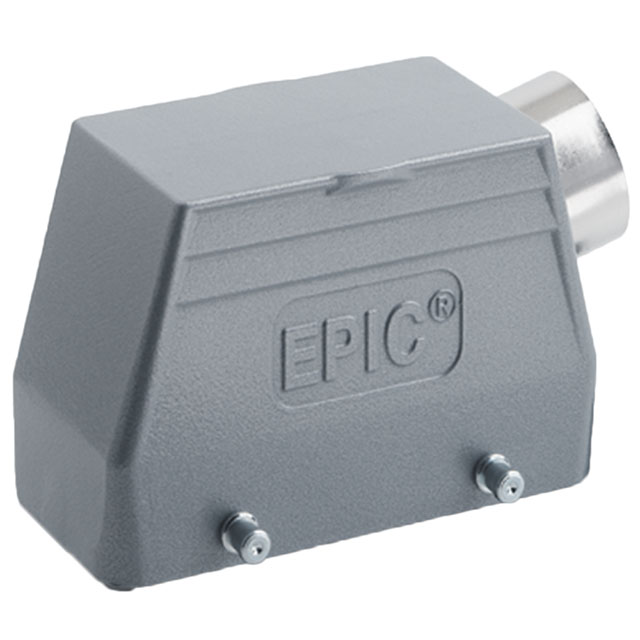

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Search across all available documentation for this part.

Active

LAPP

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	100820NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB16
Size / Dimension [x]	3.673 "
Size / Dimension [x]	93.3 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.402 "
Size / Dimension [z]	61 mm
Style	Side Entry
Thread Size	NPT-3/4

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Part	Housing Material	Thread Size	Housing Color	Housing Finish	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Lock Location	Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
LAPP 100820NP	Aluminum Alloy	NPT-3/4	Gray	Powder Coated	IP65 - Dust Tight, Water Resistant	125 °C	-40 °C	Hood	Side Entry	Locking Clip (2) on Base Bottom	HB16	3.673 "	93.3 mm	1.693 in	2.402 "	61 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-3/4 HB16 IP65 - Dust Tight, Water Resistant
