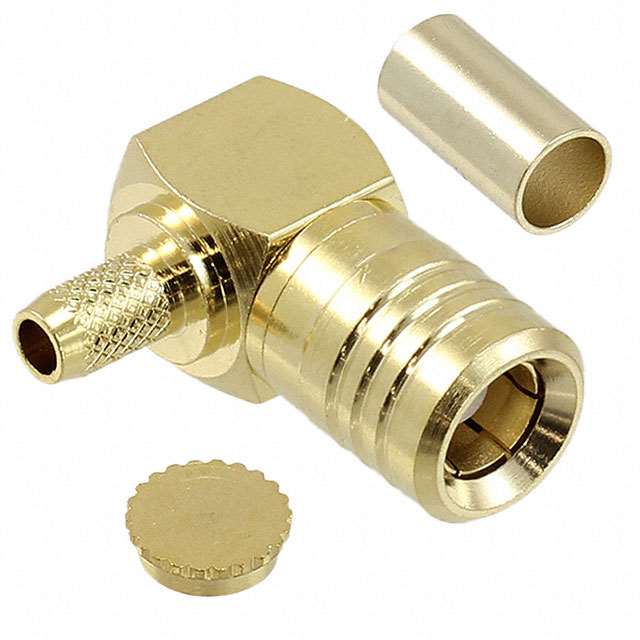

CONN SMB PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMB PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337478-0

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

CONN SMB PLUG R/A 50 OHM SOLDER

Part	Connector Type	Impedance	Center Contact Plating	Voltage Rating	Center Contact Material	Number of Ports	Insertion Loss	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Shield Termination	Contact Termination	Cable Group	Mating Cycles	Dielectric Material	Connector Style	Fastening Type	Frequency - Max [Max]	Includes	Housing Color	Mounting Type
TE Connectivity AMP Connectors 1-1337478-0	Female Socket, Plug	50 Ohms	Gold	250 VDC	Beryllium Copper	1	0.6 dB	Gold	-65 ░C	165 °C	Brass	Crimp	Solder	188A, 316, RG-174A	500	Polytetrafluoroethylene (PTFE)	SMB	Snap-On	4 GHz	1 Connector, 1 End Cap, 1 Ferrule	Silver	Free Hanging (In-Line), Right Angle
