PI5A4684GAEX

Obsolete

Diodes Inc

IC SWITCH SPDT X 2 600MOHM 10CSP

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC SWITCH SPDT X 2 600MOHM 10CSP

Technical Specifications

Parameters and characteristics for this part

Specification	PI5A4684GAEX

-3db Bandwidth	27 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	84 pF
Channel Capacitance (CS(off), CD(off)) [custom]	84 pF
Channel-to-Channel Matching (ΔRon)	10 mOhm
Charge Injection	54 pC
Crosstalk	-70 dB
Current - Leakage (IS(off)) (Max)	80 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max) [Max]	600 mOhm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

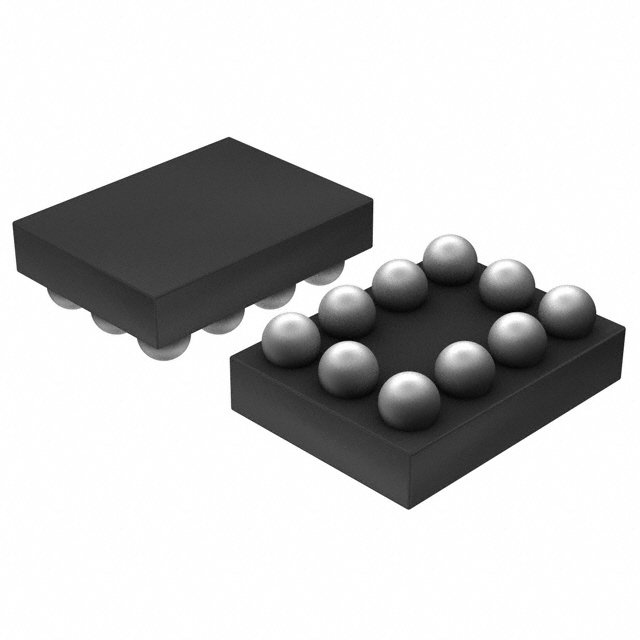

Package / Case	CSPBGA, 10-WFBGA
Supplier Device Package	10-CSP
Supplier Device Package [x]	2.07
Supplier Device Package [y]	1.55
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	60 ns
Switch Time (Ton, Toff) (Max) [custom]	20 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Leakage (IS(off)) (Max)	Package / Case	Multiplexer/Demultiplexer Circuit	Number of Circuits	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Crosstalk	Mounting Type	Switch Circuit	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]
Diodes Inc PI5A4684GAEX	85 °C	-40 °C	80 nA	10-WFBGA CSPBGA	2:1	2	27 MHz	84 pF	84 pF	54 pC	-70 dB	Surface Mount	SPDT	600 mOhm	10 mOhm	1.8 V	5.5 V	1.55	10-CSP	2.07	60 ns	20 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Circuit IC Switch 2:1 600mOhm 10-CSP (2.07x1.55)
