30-01626
ActiveTensility International Corp
CABLE 10COND 22AWG BLACK SHLD
30-01626
ActiveTensility International Corp
CABLE 10COND 22AWG BLACK SHLD
Description
General part information
30-01626

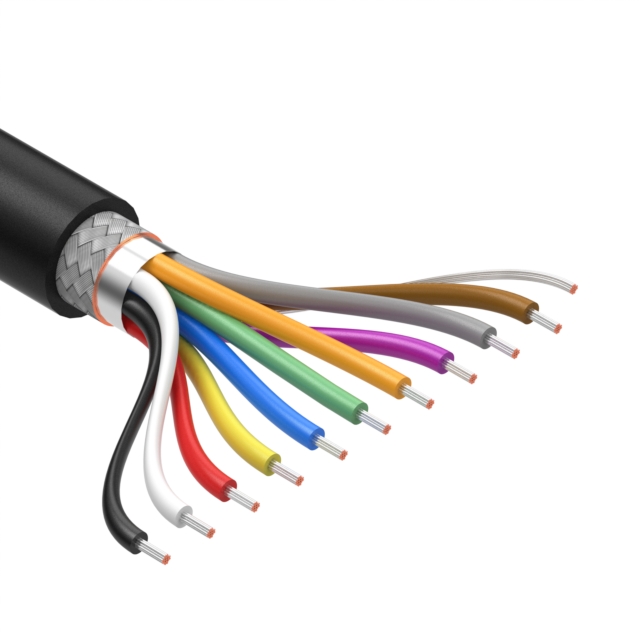

10 Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-01626 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 17 |
| Conductor Strand Diameter | 0.0063 in |
| Features | UV Resistant, Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter | 0.346 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0315 in |
| Jacket Color | Black |
| Length | 502 ft |
| Number of Conductors | 10 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 20387, Style, UL |
| Shield Coverage | 65%, 100% |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
