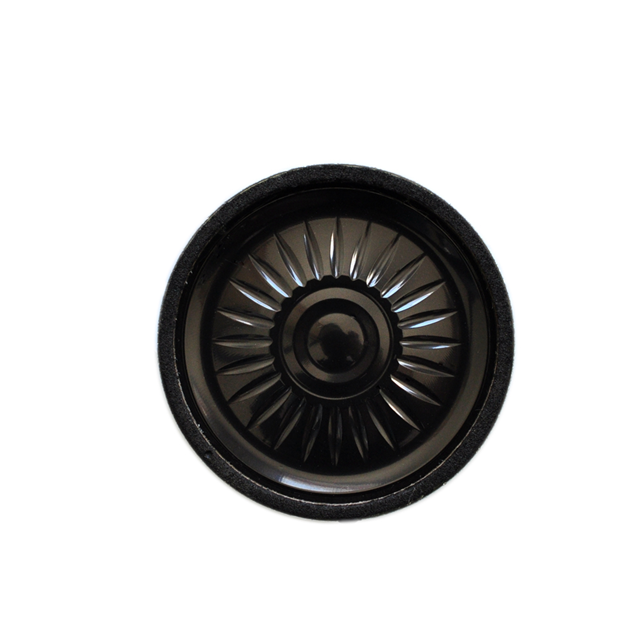

SP-4008Y
ActiveSoberton Inc.
SPEAKER 4OHM 2W TOP PORT 90DB
SP-4008Y
ActiveSoberton Inc.
SPEAKER 4OHM 2W TOP PORT 90DB
Description
General part information
SP-4008Y
4 Ohms General Purpose Speaker 2 W 550 Hz ~ 10 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-4008Y |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 550 Hz |
| Height - Seated (Max) | 0.303 in |
| Impedance | 4 Ohms |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 3 VA |
| Power - Rated | 2 W |
| Shape | Round |
| Size / Dimension Diameter | 1.575 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
