1-1337535-0

Active

TE Connectivity AMP Connectors

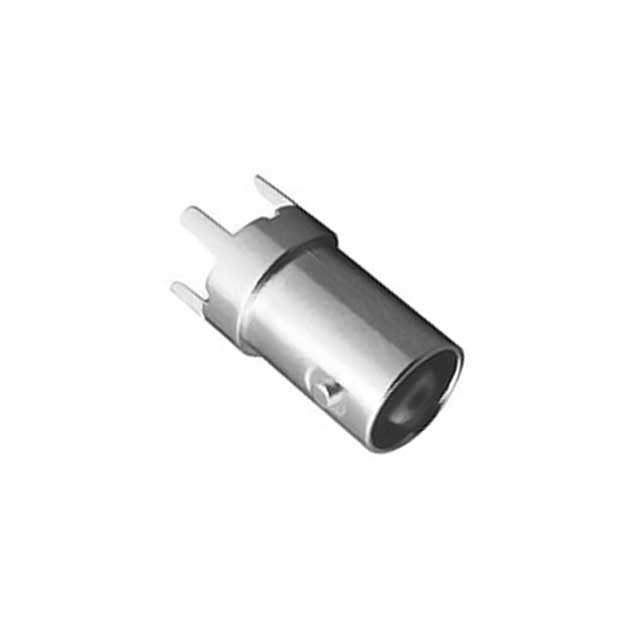

CONN BNC JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337535-0

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

CONN BNC JACK STR 50 OHM PCB

Part	Fastening Type	Mounting Type	Shield Termination	Number of Ports	Body Material	Mating Cycles	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Plating	Impedance	Body Finish	Connector Style	Voltage Rating	Contact Termination	Frequency - Max [Max]	Housing Color	Dielectric Material
TE Connectivity AMP Connectors 1-1337535-0	Bayonet Lock	Through Hole	Solder	1	Brass	500	Brass	-65 ░C	165 °C	Female Socket, Jack	Gold	50 Ohms	Nickel	BNC	500 V	Solder	4 GHz	Silver	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
