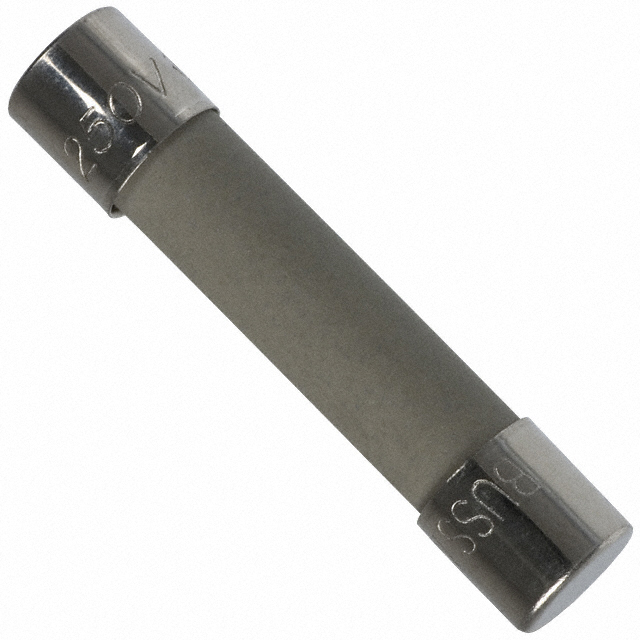

BK/MDA-1/16
ObsoleteEaton - Electronics Division
FUSE CERAMIC 31MA 250VAC 3AB 3AG
BK/MDA-1/16
ObsoleteEaton - Electronics Division
FUSE CERAMIC 31MA 250VAC 3AB 3AG
Description
General part information
BK/MDA-1/16
31 mA 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/MDA-1/16 |
|---|---|
| Color | Black |
| Current Rating | 31 mA |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1.25 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
