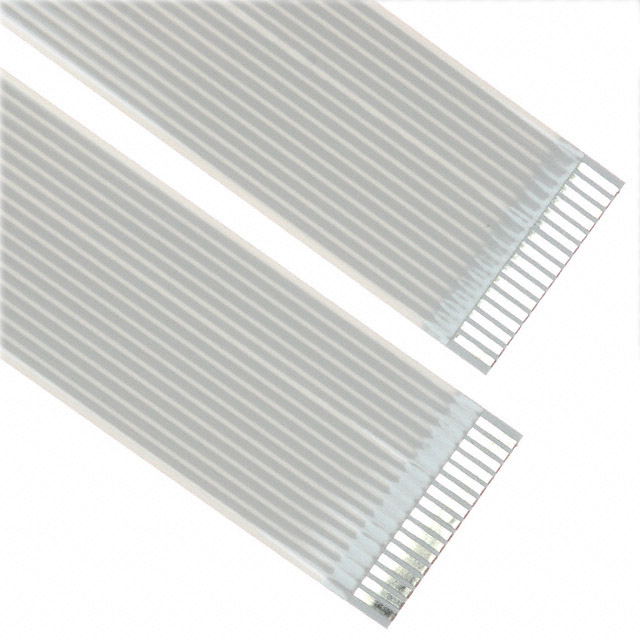

100R16-51B

Active

Parlex USA LLC

CABLE FFC/FPC 16POS 1MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 16POS 1MM 2"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R16-51B	100R16 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 457.2 mm
Length	2 in	2 - 18 in
Length	-	5.984 - 12 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	16	16
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 16POS 1MM 3"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Number of Conductors	Length	Length	Cable Type	Termination Style	Length [x]	Length [x]
Parlex USA LLC 100R16-76B	0.14 in	3.56 mm	0.039 in	1 mm	16	3 in	76.2 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R16-127B	0.14 in	3.56 mm	0.039 in	1 mm	16	5 in	127 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R16-305B	0.14 in	3.56 mm	0.039 in	1 mm	16		304.8 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides	12 in
Parlex USA LLC 100R16-457B	0.14 in	3.56 mm	0.039 in	1 mm	16	18 "	457.2 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R16-51B	0.14 in	3.56 mm	0.039 in	1 mm	16	2 in	50.8 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R16-102B	0.14 in	3.56 mm	0.039 in	1 mm	16	4 in	101.6 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R16-254B	0.14 in	3.56 mm	0.039 in	1 mm	16		254 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides	10 in
Parlex USA LLC 100R16-203B	0.14 in	3.56 mm	0.039 in	1 mm	16			FFC, FPC	Backers on Both Sides, Top on Both Sides	7.992 in	203 mm
Parlex USA LLC 100R16-152B	0.14 in	3.56 mm	0.039 in	1 mm	16			FFC, FPC	Backers on Both Sides, Top on Both Sides	5.984 in	152 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)

Technical documentation and resources
