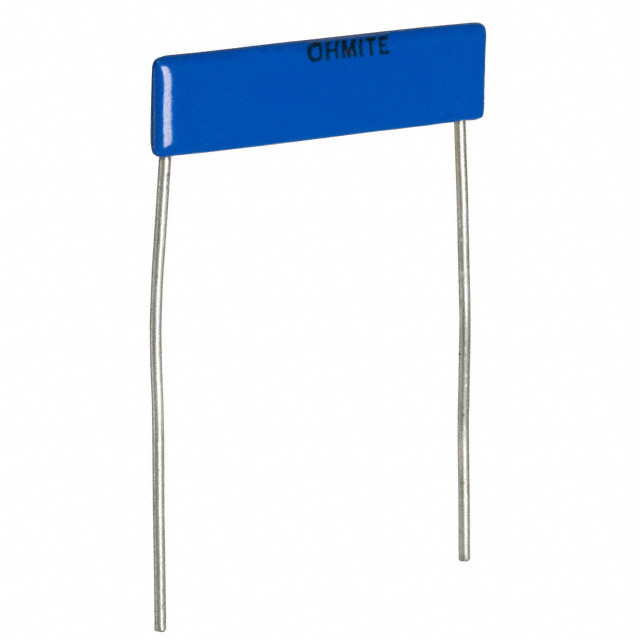

Specification	SM104035006FE

Composition	Thick Film
Features	Non-Inductive, High Voltage
Height - Seated (Max)	0.34 in
Number of Terminations	2
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Package Name	Radial
Power (Watts)	1.5 W
Resistance	500 MOhm
Size / Dimension Length	1.08 in
Size / Dimension Width	0.1 in
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

Slim-Mox Series

Part	Features	Package / Case	Power (Watts)	Package Name	Composition	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Temperature Coefficient	Number of Terminations	Resistance	Tolerance	Power (Watts) Options
Ohmite SM108034004FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	2.08 in	0.34 in	50 ppm/°C	2	4 MOhms	1 %
Ohmite SM101032205FE	High Voltage Non-Inductive	Radial	500 mW	Radial	Thick Film	180 °C	-55 °C	0.1 in	0.33 in	0.34 in	50 ppm/°C	2	22 MOhms	1 %	1/2W
Ohmite SM102031005J	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	0.58 in	0.34 in	50 ppm/°C	2	10 MOhm	5 %
Ohmite SM108034007FE	Current Sense High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	2.08 in	0.34 in	100 ppm/°C	2	4 GOhms	1 %
Ohmite SM102031002JE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	0.58 in	0.34 in	50 ppm/°C	2	10 kOhm	5 %
Ohmite SM102034003FE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	0.58 in	0.34 in	50 ppm/°C	2	400 kOhm	1 %
Ohmite SM102033004FE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	0.58 in	0.34 in	50 ppm/°C	2	3 MOhm	1 %
Ohmite SM104031005FE	High Voltage Non-Inductive	Radial	1.5 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	1.08 in	0.34 in	50 ppm/°C	2	10 MOhm	1 %
Ohmite SM108032003FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	2.08 in	0.34 in	50 ppm/°C	2	200 kOhm	1 %
Ohmite SM108035007FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	110 °C	-55 °C	0.1 in	2.08 in	0.34 in	100 ppm/°C	2	5 GOhm	1 %
