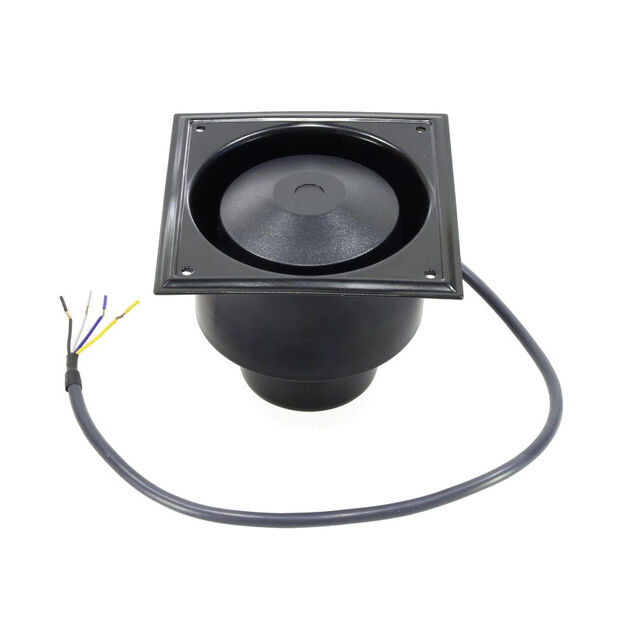

DK 121 - 100 V
ActiveVisaton GmbH & Co. KG
SPEAKER 100DB ROUND SQUARE FRAME
DK 121 - 100 V
ActiveVisaton GmbH & Co. KG
SPEAKER 100DB ROUND SQUARE FRAME
Description
General part information
DK 121 - 100 V
Speaker 570 Hz ~ 4.4 kHz User Defined Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | DK 121 - 100 V |
|---|---|
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range (Max) | 4.4 kHz |
| Frequency Range (Min) | 570 Hz |
| Height - Seated (Max) | 3.858 in |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Material - Cone | Polypropylene (PP) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | User Defined |
| Shape | Round, Square Frame |
| Size / Dimension Diameter | 3.996 in |
| Size / Dimension Length | 4.764 in |
| Termination | Wire Leads |
