RDM-MBF6-A-8414-1M-X-001

Active

Raltron Electronics

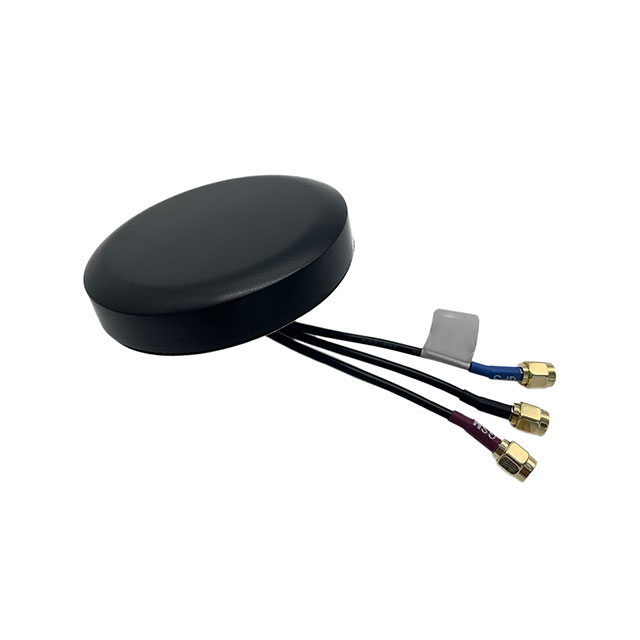

RF ANT GPS-GSM-WIF DOME-IP66 SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDM-MBF6-A-8414-1M-X-001

Active

Raltron Electronics

RF ANT GPS-GSM-WIF DOME-IP66 SMA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDM-MBF6-A-8414-1M-X-001

Antenna Type	Dome
Applications	Cellular, Wi-Fi, LNA, GSM, GPS
Frequency (Center/Band)	1.58 GHz, 1.94 GHz, 2.4 GHz
Frequency Group	Wide Band
Frequency Range	1.575 GHz
Frequency Range [Max]	2.17 GHz, 960 MHz
Frequency Range [Min]	1.71 GHz, 824 MHz
Gain	3 dBi, 2 dBic
Height (Max) [Max]	14.6 mm
Height (Max) [Max] [z]	0.575 in
Ingress Protection	IP66, IP65
Mounting Type	Screw
Number of Bands	3
RF Family/Standard	Navigation, WiFi, Cellular
Termination	SMA Male (3)
VSWR [Max]	2
VSWR [Min]	1.5

RDM-MBF6 Series

RF ANT GPS-GSM-WIF DOME-IP66 SMA

Part	Applications	Height (Max) [Max]	Height (Max) [Max] [z]	Gain	Antenna Type	Number of Bands	RF Family/Standard	Mounting Type	Termination	Frequency Range [Max]	Frequency Range	Frequency Range [Min]	VSWR [Max]	VSWR [Min]	Frequency Group	Frequency (Center/Band)	Ingress Protection
Raltron Electronics RDM-MBF6-A-8414-1M-X-001	Cellular, GPS, GSM, LNA, Wi-Fi	14.6 mm	0.575 in	2 dBic, 3 dBi	Dome	3	Cellular, Navigation, WiFi	Screw	SMA Male (3)	2.17 GHz, 960 MHz	1.575 GHz	1.71 GHz, 824 MHz	2	1.5	Wide Band	1.58 GHz, 1.94 GHz, 2.4 GHz	IP65, IP66

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.98
		10	$ 22.50

Description

General part information

RDM-MBF6 Series

1.58GHz, 1.94GHz, 2.4GHz Cellular, GPS, GSM, LNA, Wi-Fi Dome RF Antenna 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz 2dBi, 2dBi, 3dBi SMA Male (3) Screw
