HAT2054M-EL-E
ActiveRenesas Electronics Corporation
MOSFET N-CH 30V 6.3A 6TSOP
HAT2054M-EL-E
ActiveRenesas Electronics Corporation
MOSFET N-CH 30V 6.3A 6TSOP
Description
General part information
HAT2054M-EL-E
N-Channel 30 V 6.3A (Ta) 1.05W (Ta) Surface Mount 6-TSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | HAT2054M-EL-E |
|---|---|
| Current - Continuous Drain (Id) (Ta) | 6.3 A |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) | 620 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

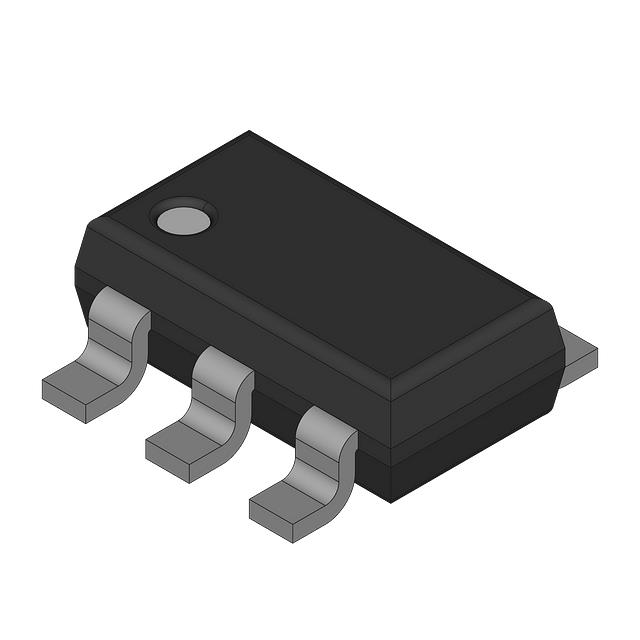

| Package / Case | TSOT-23-6, SOT-23-6 Thin |
| Package Name | 6-TSOP |
| Power Dissipation (Max) | 1.05 W |
| Rds On (Max) | 31 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
