KRF70-10X2-24-26
ActiveElpress Inc.

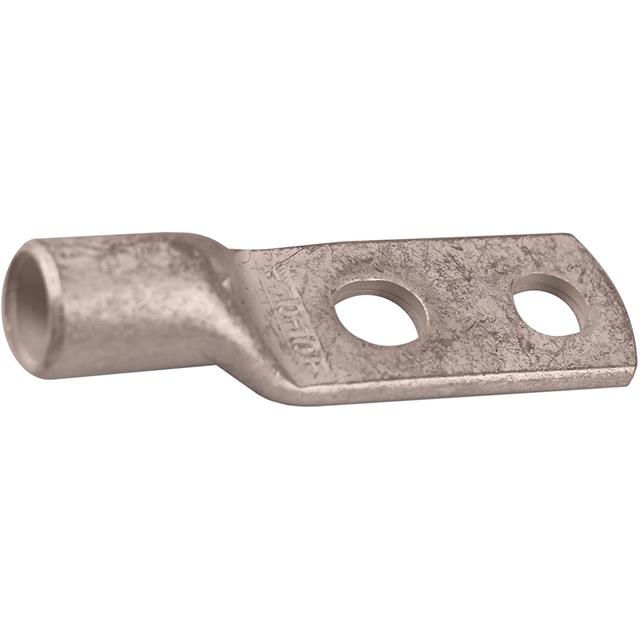

BATTERY LUG 2-HOLE 70 MM M10
KRF70-10X2-24-26
ActiveElpress Inc.
BATTERY LUG 2-HOLE 70 MM M10
Description
General part information
KRF70-10X2-24-26
Terminal Connector Rectangular Ring, Tubular 2 AWG M10 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF70-10X2-24-26 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 3.386 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M10 Stud, M10 |
| Tab Thickness | 0.154 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 0.984 in |
| Wire Gauge | 2 AWG |
