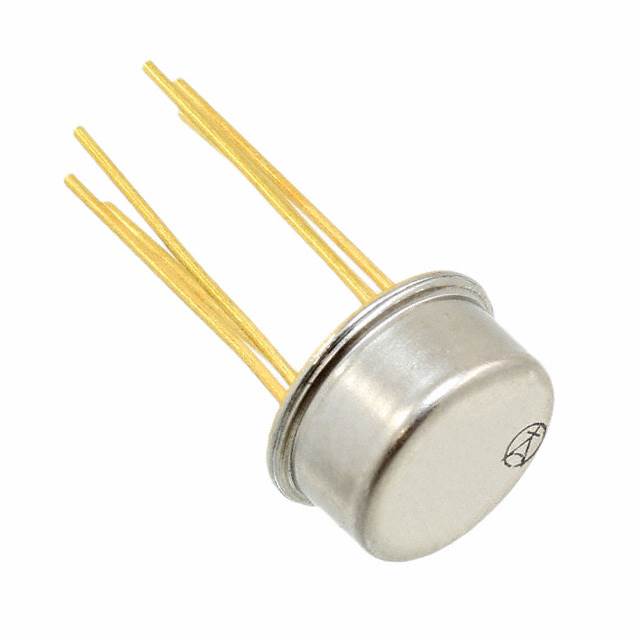

JANTXV4N22

Active

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

Technical Specifications

Parameters and characteristics for this part

OPTOISO 1KV TRANS W/BASE TO78-6

Part	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Package / Case	Supplier Device Package	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ)	Mounting Type	Number of Channels	Voltage - Isolation
TT Electronics/Optek Technology JANTXV4N22	50 mA	1.5 V	40 V	-55 °C	125 °C	DC	TO-78-6 Metal Can	TO-78-6	300 mV	40 mA	20 µs, 20 µs	Through Hole	1	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 29.54

General part information

Optoisolator Transistor with Base Output 1000VDC 1 Channel TO-78-6
