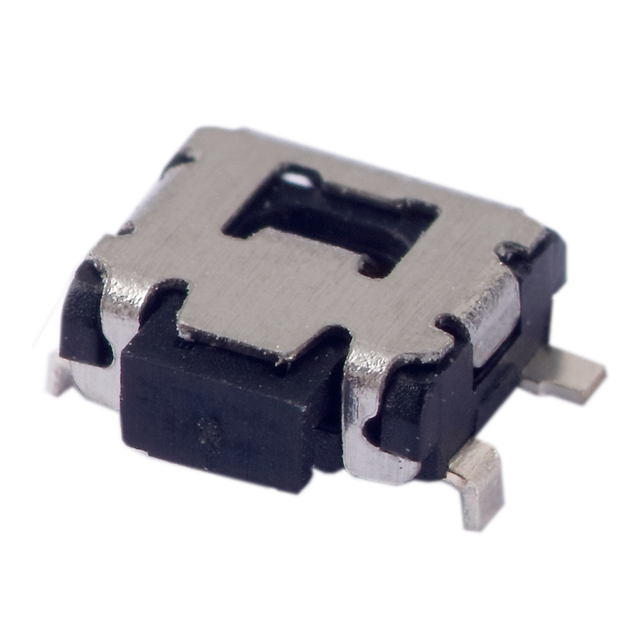

226EM2SAAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Length, Right Angle	Features	Mechanical Life	Termination Style	Outline [x]	Outline [y]	Actuator Type	Switch Function	Circuit	Illumination	Switch Travel	Mounting Type	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation
CTS Electrocomponents 226EM2SAAR	3.55 mm	Tactile Feedback	100000 Cycles	Gull Wing	4.7 mm	2.9 mm	Rectangular Button	Off-Mom	SPST-NO	Non-Illuminated	0.2 mm	Surface Mount, Right Angle	0.05 A, 12 VDC	85 °C	-40 °C	Side Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.16

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
