BPJF02X

Active

Switchcraft Inc.

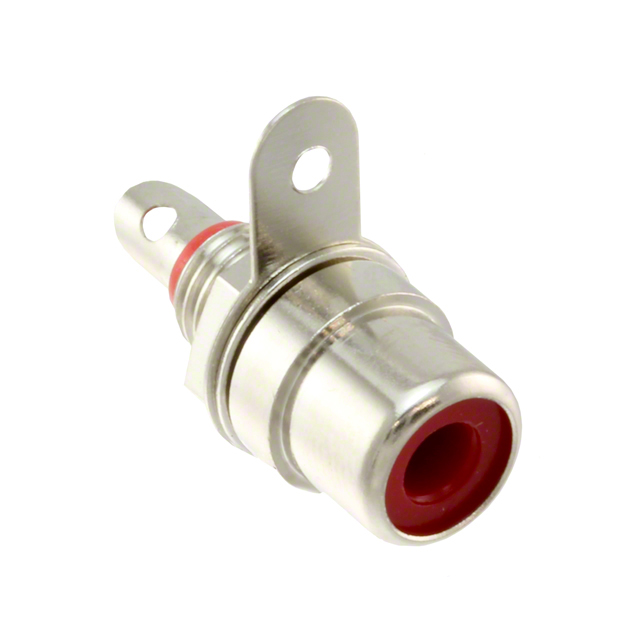

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPJF02X	BPJF02 Series

Actual Diameter [custom]	8.25 mm	8.25 mm
Actual Diameter [custom]	0.134 "	0.134 "
Actual Diameter [custom]	3.4 mm	3.4 mm
Actual Diameter [custom]	0.325 "	0.325 "
Body Color	Silver	Silver
Body Material	Brass	Brass
Connector Type	Phono (RCA) Jack	Phono (RCA) Jack
Contact Material	Brass	Brass
Contact Material - Plating	-	Gold
Contact Material - Plating [custom]	Nickel	Nickel
Features	Mounting Hardware, Grounding Tab	Mounting Hardware, Grounding Tab
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm	3.2 - 9 mm
Insulation Color	Red	Red
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Panel Hole Size	10.2 mm	10.2 mm
Panel Hole Size	0.402 in	0.402 in
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	1/4"-32	1/4"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Contact Material - Plating [custom]	Connector Type	Gender	Insulation Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Thread Size	Panel Hole Size	Panel Hole Size	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Features	Industry Recognized Mating Diameter [diameter]	Internal Switch(s)	Shielding	Signal Lines	Termination	Body Color	Body Material	Includes	Contact Material	Contact Material - Plating [custom]
Switchcraft Inc. BPJF02AUX	Gold	Phono (RCA) Jack	Female	Red	2	2	1/4"-32	10.2 mm	0.402 in	8.25 mm	0.134 "	3.4 mm	0.325 "	Grounding Tab, Mounting Hardware	3.2 mm, 9 mm		Unshielded	Mono	Solder Eyelet(s)	Silver	Brass	Connector, Nut, Washer	Brass
Switchcraft Inc. BPJF02X		Phono (RCA) Jack	Female	Red	2	2	1/4"-32	10.2 mm	0.402 in	8.25 mm	0.134 "	3.4 mm	0.325 "	Grounding Tab, Mounting Hardware	3.2 mm, 9 mm		Unshielded	Mono	Solder Eyelet(s)	Silver	Brass	Connector, Nut, Washer	Brass	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
