Description
General part information

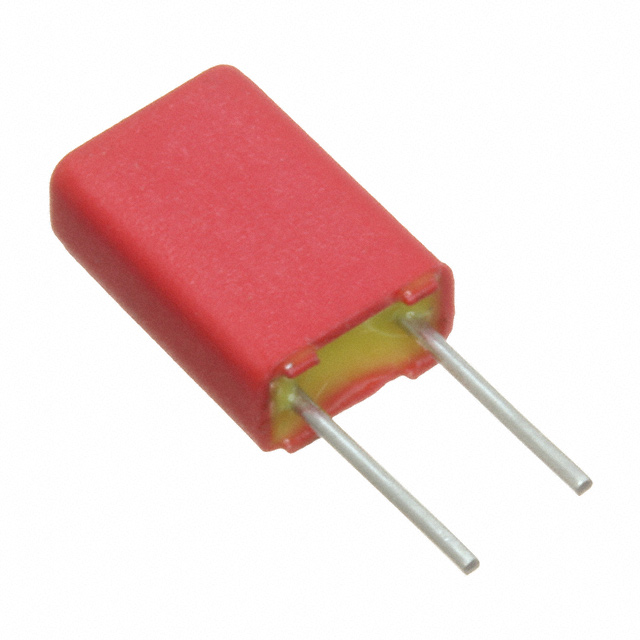

FKP0F011000B00KSSD
1000 pF Film Capacitor 160V 250V Polypropylene (PP) Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FKP0F011000B00KSSD |
|---|---|
| Applications | High Frequency, Switching, High Pulse, DV/DT |
| Capacitance | 1000 pF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.098 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.181 in |
| Size / Dimension Width | 0.098 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
