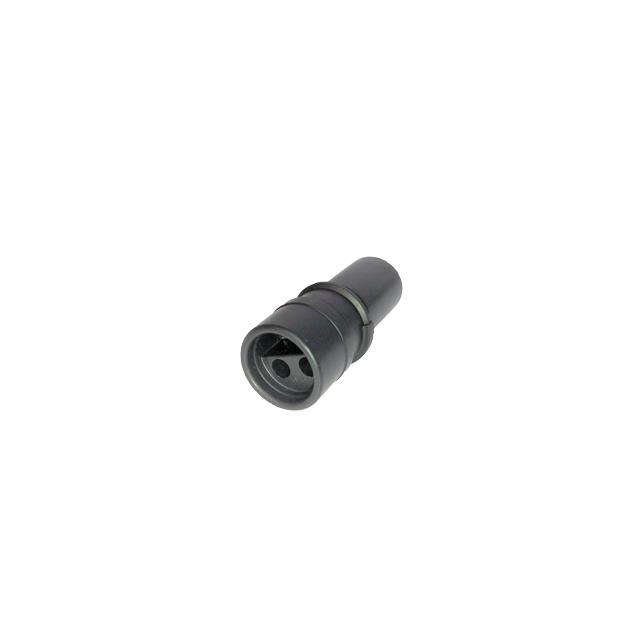

120-1808-000

Active

Sure-Seal Legacy

SS-3P

Search across all available documentation for this part.

Active

Sure-Seal Legacy

SS-3P

Technical Specifications

Parameters and characteristics for this part

Specification	120-1808-000

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Santoprene™ 101-73
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Santoprene™ 101-73
Shielding	Unshielded
Type	For Female Sockets or Male Pins

SS-3P

Part	Contact Type	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Material	Ingress Protection	Mounting Type	Housing Color	Contact Shape	Shielding	Type	Orientation	Note
Sure-Seal Legacy 120-1808-000	Crimp	Santoprene™ 101-73	Plug Housing	-40 °C	105 ░C	Push-Pull	Santoprene™ 101-73	IP65, IP67	Free Hanging (In-Line)	Black	Circular	Unshielded	For Female Sockets or Male Pins	Keyed	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line)

Technical documentation and resources

No documents available
