1267AY-100M=P3

Active

Murata Electronics

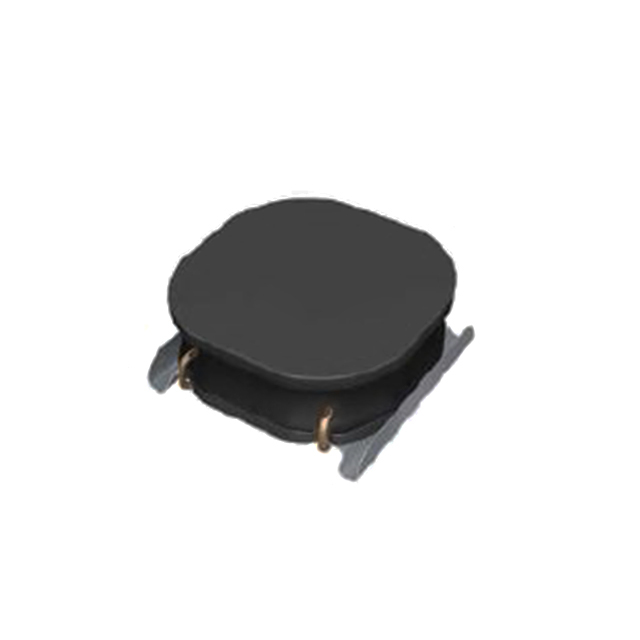

FIXED IND 10UH 3.3A 39.6MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1267AY-1R0N=P3

1267AY-100M=P3

Active

Murata Electronics

FIXED IND 10UH 3.3A 39.6MOHM SMD

Deep-Dive with AI

DocumentsDatasheet 1267AY-1R0N=P3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1267AY-100M=P3	1267AY Series

Current Rating (Amps)	3.3 A	1.1 - 10.4 A
DC Resistance (DCR)	-	168 mOhm
DC Resistance (DCR) [Max]	39.6 mOhm	8.4 - 336 mOhm
Height - Seated (Max) [Max]	0.157 in	0.157 in
Height - Seated (Max) [Max]	4 mm	4 mm
Inductance	10 µH	1 - 100 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	8.3 mm	8.3 mm
Size / Dimension [x]	0.327 in	0.327 in
Size / Dimension [y]	8.3 mm	8.3 mm
Size / Dimension [y]	0.327 in	0.327 in
Tolerance	20 %	20 - 30 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

1267AY Series

FIXED IND 47UH 1.6A 168 MOHM SMD

Part	DC Resistance (DCR)	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Tolerance	Mounting Type	Current Rating (Amps)	Shielding	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Murata Electronics 1267AY-470M=P3	168 mOhm	Ferrite	0.157 in	4 mm	Nonstandard	47 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	20 %	Surface Mount	1.6 A	Shielded	100 kHz
Murata Electronics 1267AY-101M=P3		Ferrite	0.157 in	4 mm	Nonstandard	100 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	20 %	Surface Mount	1.1 A	Shielded	100 kHz	336 mOhm
Murata Electronics 1267AY-150M=P3		Ferrite	0.157 in	4 mm	Nonstandard	15 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	20 %	Surface Mount	2.6 A	Shielded	100 kHz	58.8 mOhm
Murata Electronics 1267AY-4R7N=P3		Ferrite	0.157 in	4 mm	Nonstandard	4.7 ÁH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	30 %	Surface Mount	5.1 A	Shielded	100 kHz	20.4 mOhm
Murata Electronics 1267AY-3R3N=P3		Ferrite	0.157 in	4 mm	Nonstandard	3.3 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	30 %	Surface Mount	6.1 A	Shielded	100 kHz	15.6 mOhm
Murata Electronics 1267AY-100M=P3		Ferrite	0.157 in	4 mm	Nonstandard	10 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	20 %	Surface Mount	3.3 A	Shielded	100 kHz	39.6 mOhm
Murata Electronics 1267AY-2R2N=P3		Ferrite	0.157 in	4 mm	Nonstandard	2.2 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	30 %	Surface Mount	7.4 A	Shielded	100 kHz	13.2 mOhm
Murata Electronics 1267AY-1R0N=P3		Ferrite	0.157 in	4 mm	Nonstandard	1 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	30 %	Surface Mount	10.4 A	Shielded	100 kHz	8.4 mOhm
Murata Electronics 1267AY-1R5N=P3		Ferrite	0.157 in	4 mm	Nonstandard	1.5 µH	8.3 mm	8.3 mm	0.327 in	0.327 in	Drum Core, Wirewound	30 %	Surface Mount	8.2 A	Shielded	100 kHz	10.8 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.52
		25	$ 0.47
		50	$ 0.43
		100	$ 0.38
		250	$ 0.36
		500	$ 0.31
	Digi-Reel®	1	$ 0.59
		10	$ 0.46
		25	$ 0.42

Description

General part information

1267AY Series

10 µH Shielded Drum Core, Wirewound Inductor 3.3 A 39.6mOhm Max Nonstandard
