925068

Active

TE Connectivity AMP Connectors

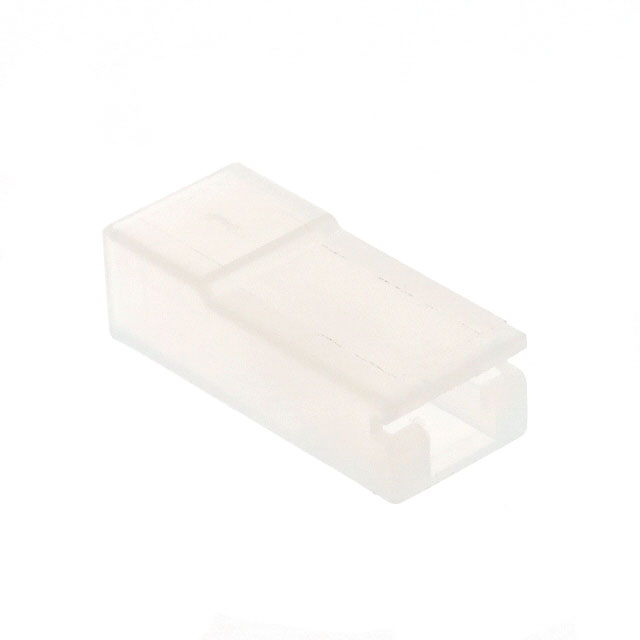

CONN RCPT HSG 0.25 1POS NATURAL

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 1POS NATURAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	925068	9250 Series

Color	Natural	Natural
Connector Type	-	Plug Housing, Cap Housing
Contact Shape	-	Circular
Contact Type	-	Crimp
Fastening Type	-	Push-Pull
For Use With/Related Products	0.25 in	0.11 - 0.25 in
For Use With/Related Products	Quick Connects	Quick Connects
For Use With/Related Products	6.35 mm	2.79 - 6.35 mm
Gender	Female, Receptacle	Female, Receptacle
Housing Color	-	Natural
Material	Polyamide	Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon, Polyamide
Material Flammability Rating	-	UL94 V-2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	1	1 - 4
Operating Temperature	-	105 ░C
Operating Temperature	-	-55 °C
Orientation	-	Keyed
Shell Material	-	Polyamide (PA66), Nylon 6/6
Shielding	-	Unshielded
Stacking Direction	-	Side to Side
Style	Housing	Housing
Terminal Size	6.35 mm	2.79 - 6.35 mm
Terminal Size	0.25 in	0.11 - 0.25 in
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect
Type	-	For Female Sockets, For Male Pins

CONN RCPT HSG 0.11 3POS NATURAL

Part	Stacking Direction	Material	Note	Terminal Type	Mounting Type	Terminal Size	Terminal Size	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Color	Gender	Style	Shielding	Housing Color	Shell Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Orientation	Material Flammability Rating	Contact Shape	Connector Type	Type	Contact Type
TE Connectivity AMP Connectors 925015	Side to Side	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Disconnect, Quick Connect	Free Hanging (In-Line)	0.11 in	2.79 mm	Quick Connects	0.11 in	2.79 mm	Natural	Female, Receptacle	Housing
TE Connectivity AMP Connectors 925076			Contacts Not Included		Free Hanging (In-Line)									Unshielded	Natural	Polyamide (PA66), Nylon 6/6	4	105 ░C	-55 °C	Push-Pull	Keyed	UL94 V-2	Circular	Plug Housing	For Female Sockets	Crimp
TE Connectivity AMP Connectors 925016	Side to Side	Polyamide (PA), Nylon	Contacts Not Included	Disconnect, Quick Connect	Free Hanging (In-Line)	0.11 in	2.79 mm	Quick Connects	0.11 in	2.79 mm	Natural	Female, Receptacle	Housing				4
TE Connectivity AMP Connectors 925075			Contacts Not Included		Free Hanging (In-Line)									Unshielded	Natural	Polyamide (PA66), Nylon 6/6	4	105 ░C	-55 °C	Push-Pull	Keyed		Circular	Cap Housing	For Male Pins	Crimp
TE Connectivity AMP Connectors 925068		Polyamide	Contacts Not Included	Disconnect, Quick Connect	Free Hanging (In-Line)	0.25 in	6.35 mm	Quick Connects	0.25 in	6.35 mm	Natural	Female, Receptacle	Housing				1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Housing Connector Female, Receptacle Natural 0.250" (6.35mm)
