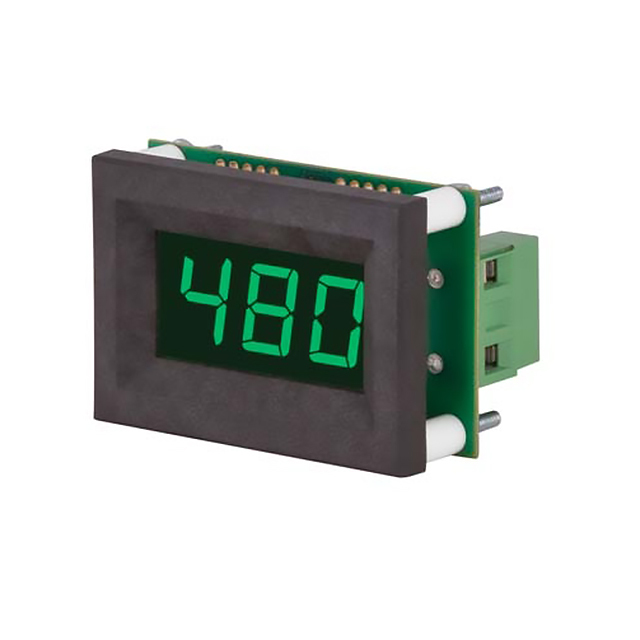

DMS-20ACV-3-R-C
ActiveMurata Power Solutions Inc.
VOLTMETER 350-600VAC LED PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMS-20ACV-3-R-C
ActiveMurata Power Solutions Inc.
VOLTMETER 350-600VAC LED PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMS-20ACV-3-R-C |
|---|---|
| Display Characters - Height | 0.4 in |
| Display Characters - Height | 10.16 mm |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 600 VAC |
| Measuring Range [Min] | 350 VAC |
| Measuring Type | Voltage |
| Mounting Type | Panel Mount - Bezel |
| Number of Characters Per Row | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 33.93 mm |
| Panel Cutout Dimensions [y] | 21.29 mm |
| Termination Style | Screw Terminal |
| Type | Voltmeter |
| Voltage - Supply | Loop Power |
| Weight | 28.12 g |
| Weight | 0.062 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DMS-20ACV Series
VOLTMETER 350-600VAC LED PNL MT
| Part | Display Type | Measuring Range [Min] | Measuring Range [Max] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Voltage - Supply | Mounting Type | Display Characters - Height | Display Characters - Height | Measuring Type | Type | Number of Characters Per Row | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-20ACV-3-R-C | LED - Red Characters | 350 VAC | 600 VAC | 33.93 mm | 21.29 mm | -25 °C | 60 °C | 28.12 g | 0.062 lb | Loop Power | Panel Mount - Bezel | 0.4 in | 10.16 mm | Voltage | Voltmeter | 3 | Screw Terminal |
Description
General part information
DMS-20ACV Series
Voltmeter LED - Red Characters Display Panel Mount - Bezel
