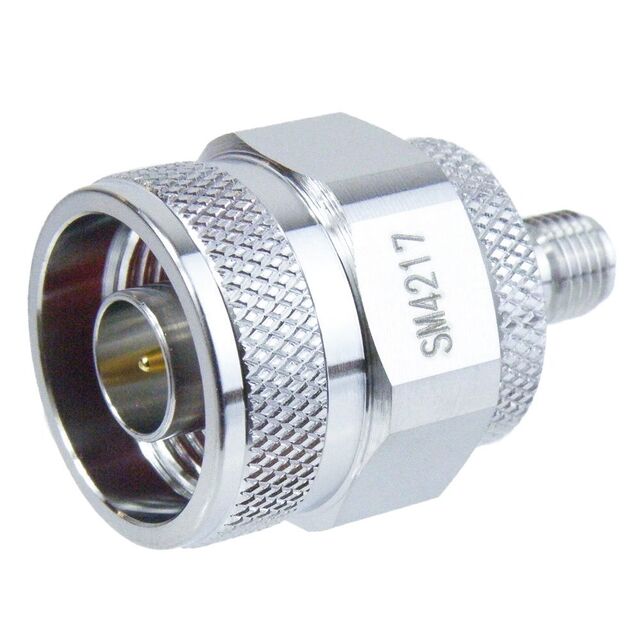

SM4217
ActiveFairview Microwave
ADAPT JACK-PLUG SMA 1.3 VSWR
SM4217
ActiveFairview Microwave
ADAPT JACK-PLUG SMA 1.3 VSWR
Description
General part information
SM4217
Adapter Coaxial Connector SMA Jack, Female Socket To N Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4217 |
|---|---|
| Adapter Series | SMA to N |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Straight |
