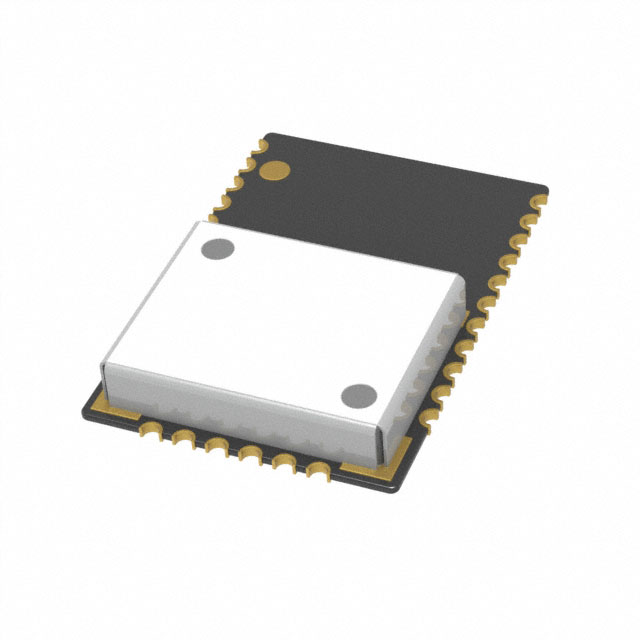

M20048-1

Active

Antenova

RF RCVR GPS 1.575GHZ MODULE

Search across all available documentation for this part.

Active

Antenova

RF RCVR GPS 1.575GHZ MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M20048-1	M20048 Series

Antenna Connector	On-Board, Trace	On-Board, Trace
Applications	General Purpose	General Purpose
Current - Receiving	31 mA	31 mA
Data Interface	UART	UART
For Use With/Related Products	-	MT3337-E
Frequency	1.575 GHz	1.575 GHz
Modulation or Protocol	GPS	GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Sensitivity	-165 dBm	-165 dBm
Supplied Contents	-	Board(s)
Supplier Device Package	Module	Module
Type	-	GNSS (GPS)
Voltage - Supply	3.3 V	3.3 V

RF RCVR GPS 1.575GHZ MODULE

Part	Applications	Supplier Device Package	Data Interface	Antenna Connector	Modulation or Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Package / Case	Voltage - Supply	Current - Receiving	Frequency	Mounting Type	For Use With/Related Products	Supplied Contents	Type
Antenova M20048-1	General Purpose	Module	UART	On-Board, Trace	GPS	85 °C	-40 °C	-165 dBm	Module	3.3 V	31 mA	1.575 GHz	Surface Mount
Antenova M20048-EVB-1												1.575 GHz		MT3337-E	Board(s)	GNSS (GPS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RADIONOVA® RF Receiver GPS 1.575GHz -165dBm On-Board, Trace Module
