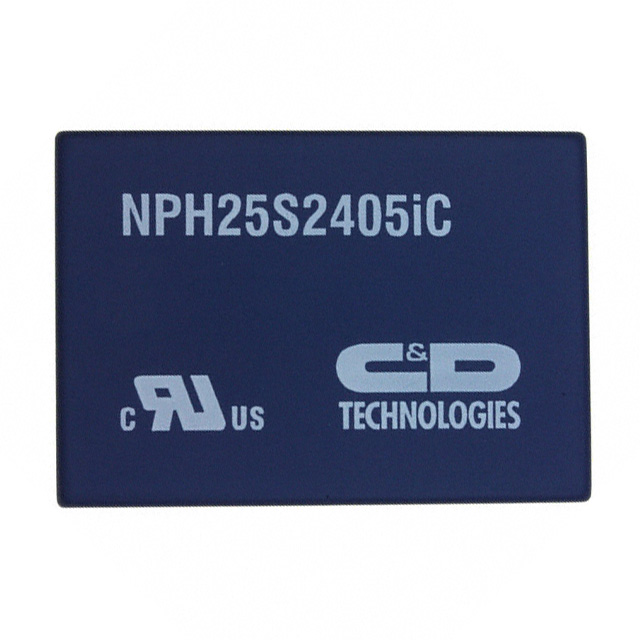

NPH25S2405IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.1V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPH25S2405IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.1V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NPH25S2405IC | NPH25S24 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A | 1.7 - 7.3 A |
| Efficiency | 84 % | 81 - 87 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 25 W | 25 W |
| Size / Dimension [x] | 50 mm | 50 mm |
| Size / Dimension [x] | 1.97 " | 1.97 " |
| Size / Dimension [y] | 1.38 " | 1.38 " |
| Size / Dimension [y] | 35.1 mm | 35.1 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Size / Dimension [z] | 9.9 mm | 9.9 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 5.1 V | 3.4 - 15.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NPH25S24 Series
DC DC CONVERTER 5.1V 25W
| Part | Voltage - Input (Min) [Min] | Efficiency | Voltage - Input (Max) [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Number of Outputs | Voltage - Output 1 | Voltage - Isolation | Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NPH25S2405IC | 18 V | 84 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 5 A | 1 | 5.1 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2412IC | 18 V | 86 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 2.1 A | 1 | 12.1 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2415IC | 18 V | 87 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 1.7 A | 1 | 15.1 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2415EIC | 18 V | 87 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 1.7 A | 1 | 15.1 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2403IC | 18 V | 81 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 7.3 A | 1 | 3.4 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2412EIC | 18 V | 86 % | 36 V | ITE (Commercial) | -40 °C | 110 °C | 6-DIP Module | Through Hole | 0.39 in | 50 mm | 9.9 mm | 1.97 " | 1.38 " | 35.1 mm | 2.1 A | 1 | 12.1 V | 1.5 kV | Isolated Module | 25 W |
Murata Power Solutions Inc. NPH25S2415IC |
Description
General part information
NPH25S24 Series
Isolated Module DC DC Converter 1 Output 5.1V 5A 18V - 36V Input
