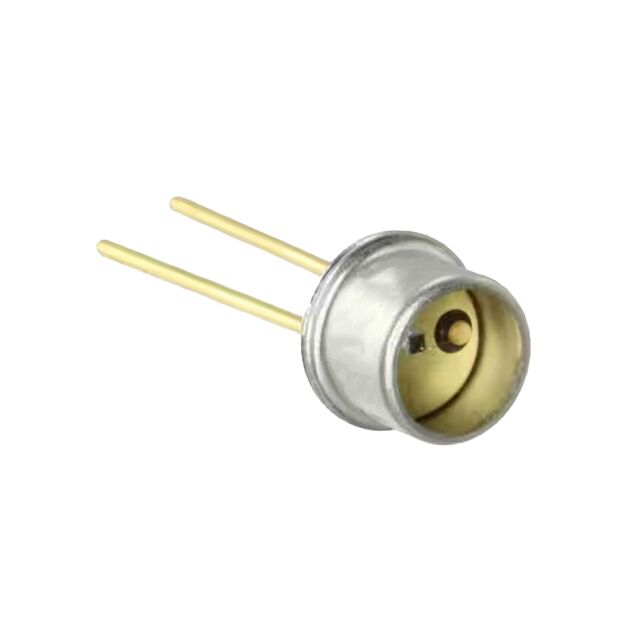

012-UVB-011
ActiveAdvanced Photonix
SENSOR PHOTODIODE 220-320NM TO46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 012-UVB-011 |
|---|---|
| Current - Dark (Typ) | 100 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Responsivity @ nm | 0.14 A/W |
| Spectral Range [Max] | 330 nm |
| Spectral Range [Min] | 220 nm |
| Viewing Angle | 55 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 19.27 | |
Description
General part information
012-UVB Series
Photodiode 55°
