Description
General part information

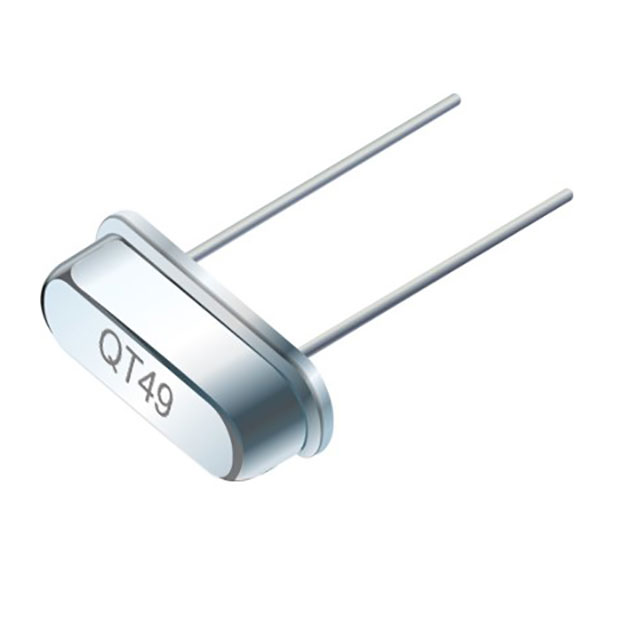

QT49-16.9344MAHH-B
16.9344 MHz ±30ppm Crystal 30 Ohms HC-49S
Technical Specifications
Parameters and characteristics for this part
| Specification | QT49-16.9344MAHH-B |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 16.9344 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.145 in |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | HC-49S, HC-49/US |
| Package Name | HC-49S |
| Size / Dimension Length | 0.453 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
