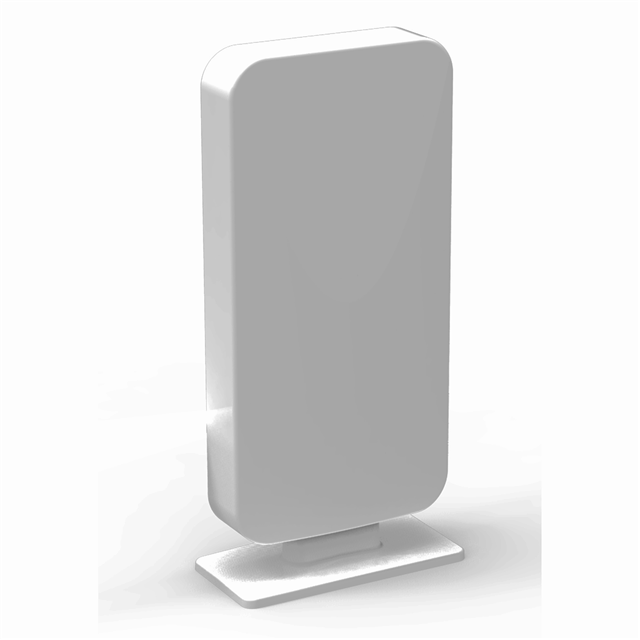

Specification	ANT5009

Antenna Type	Module
Frequency (Band)	666 MHz
Frequency (Center)	158.75 MHz
Frequency Group	VHF, UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Maximum (VHF)	300 MHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Band 1) Maximum	230 MHz
Frequency Range (Band 1) Minimum	87.5 MHz
Frequency Range (Band 2) Maximum	862 MHz
Frequency Range (Band 2) Minimum	470 MHz
Height (Max)	4.92 in
Number of Bands	2
Termination	VHF, UHF
