Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1789650 | FFKDS Series |
|---|---|---|
| Color | Green | Green, Black, Blue, Red, Gray, Yellow, White |
| Contact Material - Plating | - | Copper Alloy - Tin Plated |
| Current | 6 A | 6 A |
| Features | Lever Actuated, Interlocking (Side) | Lever Actuated, Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board | Horizontal with Board, Vertical with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Operating Temperature | - | 100 °C |
| Operating Temperature | - | -40 °C |
| Positions Per Level | 1 | 1 |
| Voltage | 300 V | 150 - 300 V |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 16 AWG | 16 - 20 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp, Push-In Spring, Screwless - Leg Spring |
FFKDS Series

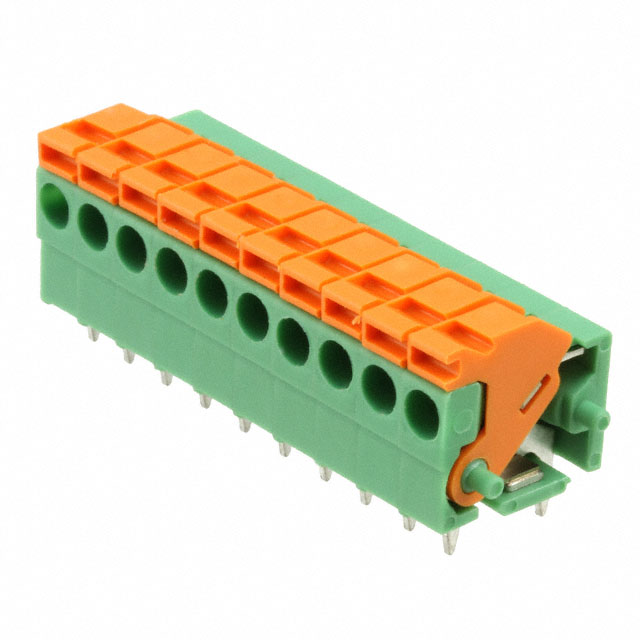

Fixed Terminal Blocks FFKDS/V-2,54 BU
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Color | Mounting Type | Current | Positions Per Level | Mating Orientation | Wire Termination | Features | Voltage | Housing Material | Contact Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1789650 | 26 AWG | 16 AWG | 1 | Green | Through Hole | 6 A | 1 | Horizontal with Board | Screwless - Spring Cage, Tension Clamp | Interlocking (Side), Lever Actuated | 300 V | Polyamide (PA), Nylon | |||
Phoenix Contact 1986770 | 26 AWG | 20 AWG | 1 | Black | Through Hole | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C | ||
Phoenix Contact 1986741 | 26 AWG | 20 AWG | 1 | Blue | Through Hole | 6 A | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | 150 V | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C |
Phoenix Contact 1986725 | 26 AWG | 20 AWG | 1 | Red | Through Hole | 6 A | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | 150 V | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C |
Phoenix Contact 1986767 | 26 AWG | 20 AWG | 1 | Gray | Through Hole | 6 A | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C | |
Phoenix Contact 1986783 | 26 AWG | 20 AWG | 1 | Yellow | Through Hole | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C | ||
Phoenix Contact 1986754 | 26 AWG | 20 AWG | 1 | White | Through Hole | 1 | Vertical with Board | Push-In Spring, Screwless - Leg Spring | Lever Actuated | Polyamide (PA), Nylon | Copper Alloy - Tin Plated | 100 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FFKDS Series
Fixed Terminal Blocks FFKDS/V-2,54 BU
