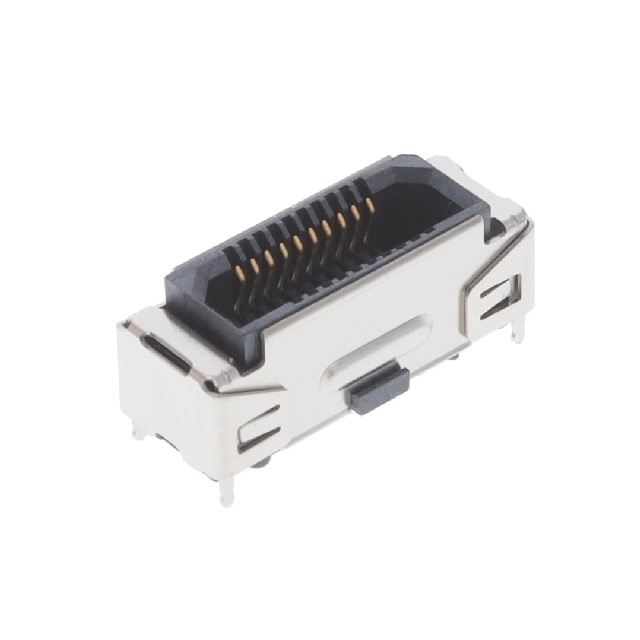

ERF8-010-07.0-S-DV-EGPS-TR

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

ERF8-010-07.0-S-DV-EGPS-TR

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-010-07.0-S-DV-EGPS-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	16 mm, 22 mm, 15 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-010 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Height Above Board	Height Above Board
Samtec Inc. ERF8-010-07.0-L-DV-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-01-L-D-RA-L-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount Right Angle				20	Board Guide Latches Mounting Flange	6.25 mm	0.246 in
Samtec Inc. ERF8-010-05.0-S-DV-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm			20	Board Guide	5.33 mm	0.21 in
Samtec Inc. ERF8-010-01-S-D-EM2-K-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Board Edge Straddle Mount				20	Pick and Place
Samtec Inc. ERF8-010-07.0-L-DV-EGP-K-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide Pick and Place
Samtec Inc. ERF8-010-07.0-L-DV-EGP-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-07.0-S-DV-EGPS-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide Shielded
Samtec Inc. ERF8-010-07.0-S-DV-EGP-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-01-L-D-EM2-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Board Edge Straddle Mount				20
Samtec Inc. ERF8-010-01-L-D-RA-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount Right Angle				20	Board Guide Mounting Flange	6.25 mm	0.246 in
