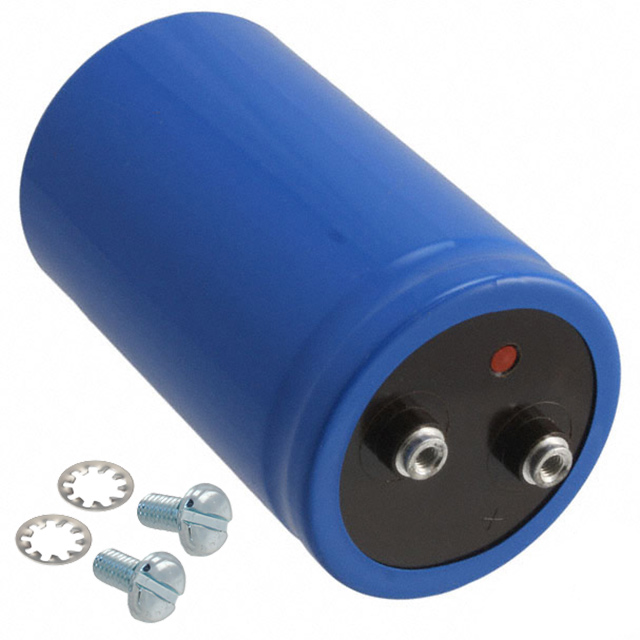

Specification	CGS173U150W5L

Applications	General Purpose
Capacitance	17000 µF
ESR (Equivalent Series Resistance)	20 mOhm
Height - Seated (Max)	5.625 in
Lifetime	2000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	16.51 A, 12.7 A
Size / Dimension Diameter	2.5 in
Tolerance (Negative)	10 %
Tolerance (Positive)	75 %
Voltage - Rated	150 VAC
