316-024-420-102

Active

EDAC Inc.

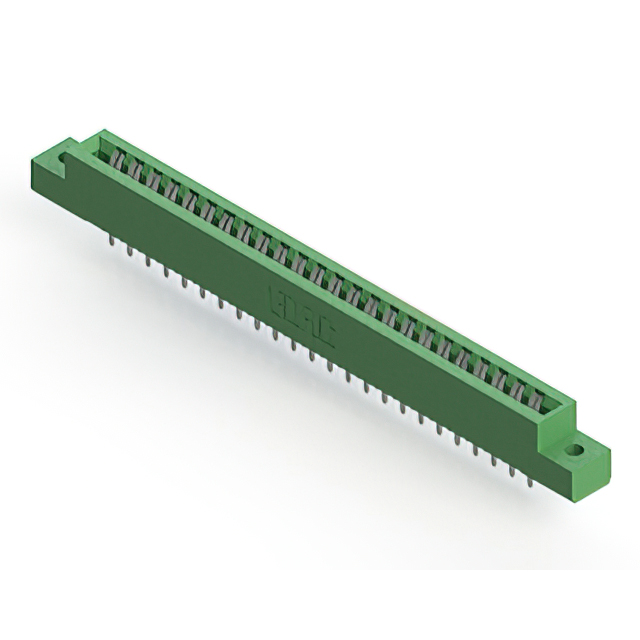

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

316-024-420-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	316-024-420-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	56
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

316-024 Series

Part	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Rows	Termination Rows	Color	Material - Insulation	Contact Type	Pitch [x]	Pitch [x]	Contact Material	Contact Finish	Mounting Type	Read Out	Number of Positions	Card Type	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 316-024-420-102	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge
EDAC Inc. 316-024-421-102	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge
EDAC Inc. 316-024-400-102	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin		Dual	56	Non Specified - Dual Edge
EDAC Inc. 316-024-420-104	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge
EDAC Inc. 316-024-421-178	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder			4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge	Card Guides
EDAC Inc. 316-024-400-178	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)			4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin		Dual	56	Non Specified - Dual Edge	Card Guides
EDAC Inc. 316-024-420-158	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder			4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge	Card Guides
EDAC Inc. 316-024-520-107	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder			Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Gold	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge		10 Áin	0.25 Ám
EDAC Inc. 316-024-521-102	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Gold	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge		10 Áin	0.25 Ám
EDAC Inc. 316-024-421-158	24	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder			4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female	2	1	Green	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	Copper Alloy	Tin	Panel Mount Through Hole	Dual	56	Non Specified - Dual Edge	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.31
Newark	Each	1	$ 15.97
		100	$ 9.07
		250	$ 7.52
		500	$ 6.81
		1000	$ 5.85

Description

General part information

316-024 Series

56 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
