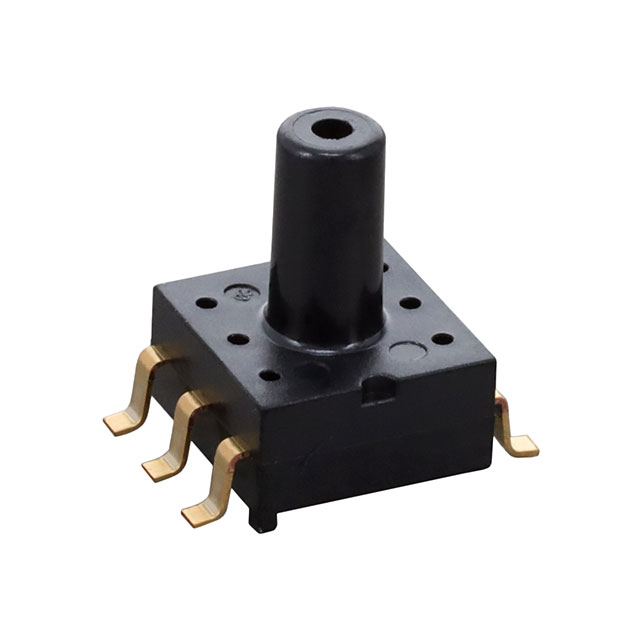

BLC-L20D-U2

Active

Amphenol All Sensors Corporation

SENSOR 0.72PSIG 0.12" .038V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.72PSIG 0.12" .038V

Technical Specifications

Parameters and characteristics for this part

SENSOR 0.72PSIG 0.12" .038V

Part	Port Style	Pressure Type	Mounting Type	Applications	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Port Size	Port Size	Package / Case	Output [Max]	Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy
Amphenol All Sensors Corporation BLC-L20D-U2	Barbless	Gauge	Surface Mount	Board Mount	0.72 PSI	4.98 kPa	1.8 V	0.9 V	Analog Voltage	Male - Tube	0.12 ", 3 mm	6-SMD, Gull Wing, Top Port	38 mV	0 mV	-25 °C	85 °C	Gull Wing	7.25 PSI	50 kPa	0.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±0.72PSI (±4.98kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 38 mV 6-SMD, Gull Wing, Top Port

Technical documentation and resources

No documents available
