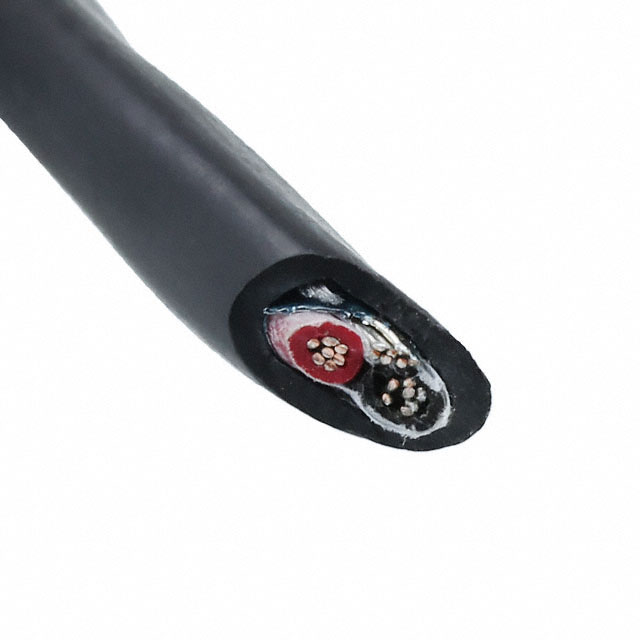

2461C BK002

Active

ALPHA WIRE

CABLE 2COND 22AWG BLK SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG BLK SHLD 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2461C BK002	2461C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polypropylene (PP)	Polypropylene (PP)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.136 in	0.136 in
Jacket (Insulation) Diameter [diameter]	3.45 mm	3.45 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Black	Slate, Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	2	2
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

SHIELDED MULTI-CONDUCTOR CABLE TAPE POLYPROPYLENE 2CONDUCTORS 22AWG 3.68MM 300VAC SLATE POLYVINYL CHLORIDE 304.8M SPOOL

Part	Usage	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket Color	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length	Length	Voltage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Cable Type	Shield Type	Wire Gauge	Length [x]	Length [x]
ALPHA WIRE 2461C SL001	Communication, Control	100 %	0.02 in	0.508 mm	Polypropylene (PP)	Slate	Poly-Vinyl Chloride (PVC)	Drain Wire	7	30 AWG	2	1000 ft	304.8 m	300 V	Aluminum	0.136 in	3.45 mm	Copper, Tinned	Multi-Conductor	Foil	22 AWG
ALPHA WIRE 2461C SL021	Communication, Control	100 %	0.02 in	0.508 mm	Polypropylene (PP)	Slate	Poly-Vinyl Chloride (PVC)	Drain Wire	7	30 AWG	2	1000 ft	304.8 m	300 V	Aluminum	0.136 in	3.45 mm	Copper, Tinned	Multi-Conductor	Foil	22 AWG
ALPHA WIRE 2461C BK021	Communication, Control	100 %	0.02 in	0.508 mm	Polypropylene (PP)	Black	Poly-Vinyl Chloride (PVC)	Drain Wire	7	30 AWG	2	1000 ft	304.8 m	300 V	Aluminum	0.136 in	3.45 mm	Copper, Tinned	Multi-Conductor	Foil	22 AWG
ALPHA WIRE 2461C BK002	Communication, Control	100 %	0.02 in	0.508 mm	Polypropylene (PP)	Black	Poly-Vinyl Chloride (PVC)	Drain Wire	7	30 AWG	2			300 V	Aluminum	0.136 in	3.45 mm	Copper, Tinned	Multi-Conductor	Foil	22 AWG	500 '	152.4 m
ALPHA WIRE 2461C BK001	Communication, Control	100 %	0.02 in	0.508 mm	Polypropylene (PP)	Black	Poly-Vinyl Chloride (PVC)	Drain Wire	7	30 AWG	2	1000 ft	304.8 m	300 V	Aluminum	0.136 in	3.45 mm	Copper, Tinned	Multi-Conductor	Foil	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 22 AWG Foil 500.0' (152.4m)
