383LX153M080B062V
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 80V SNAP TH
383LX153M080B062V
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 80V SNAP TH
Description
General part information
383LX153M080B062V

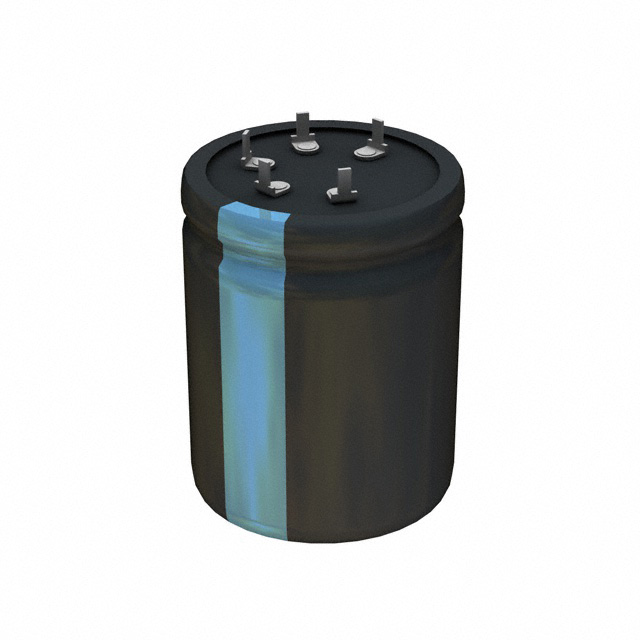

15000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5 Lead 28mOhm @ 120Hz 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 383LX153M080B062V |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| ESR (Equivalent Series Resistance) | 28 mOhm |
| Height - Seated (Max) | 2.559 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Lead |
| Package Name | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 7.65 A, 6.65 A |
| Size / Dimension Diameter | 1.969 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
