2178-L/S-CSB-SMC-BRKT

Active

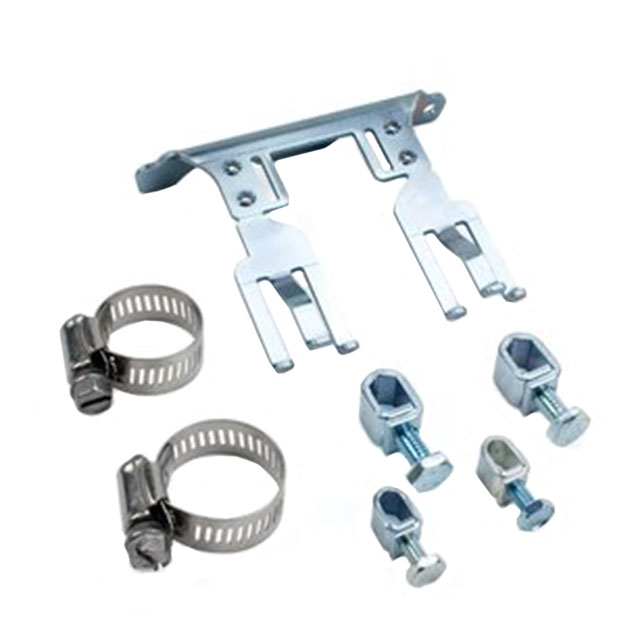

CABLE STRAIN RELIEF BRACKET

Search across all available documentation for this part.

Active

CABLE STRAIN RELIEF BRACKET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2178-L/S-CSB-SMC-BRKT	2178 Series

Accessory Type	Strain Relief Bracket	Strain Relief Bracket, Grommet, Ground Isolation Kit
Drive Size	-	0.375 in
Features	-	8 Ground Plugs, Fiber Optic Splices, External Ground, 2 Ground Plugs, 2172 Strength Member Clamp, Flame Retardant, 2181 Cable Addition Kit, External Ground Isolation, 4 Ports for SST-Drop Cable, 3 Ground Plugs, 2 Cable Entry Kits, 2532 Splice Tray, 4 Ground Plugs, 6PGA Grommet, 2527 Splice Tray
Features	-	60 in-lbs
Features	-	6.8 Nm
Features	-	47.5 Nm
Features	-	420 in-lbs
Features	-	2 pcs per Pkg
For Use With/Related Products	2178 Series Fiber Optic Splice Enclosures	2178 Series Fiber Optic Splice Enclosures, Fiber Optic Splices
Includes	-	Plastic Case, Extension Bar, Handle
Length - Overall	-	14.57 - 26.97 in
Length - Overall	-	370 - 685 mm
Quantity	-	6 Rolls
Range of Values	-	0.5 in
Range of Values	-	0.375 in
Type	-	Enclosure System, Installed Sealing Gasket

WIRE SPLICE ENCLOSURE SYS

Part	Length - Overall [x]	Length - Overall [x]	Features	Type	Quantity	Includes	Features [Min]	Features [Min]	Features [Max]	Features [Max]	Drive Size	Range of Values [Max]	Range of Values [Min]	Accessory Type	For Use With/Related Products	Features
3M 2178-XL-8G	26.97 in	685 mm	8 Ground Plugs, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-2T-LL-CLTK					6 Rolls	Extension Bar, Handle, Plastic Case	60 in-lbs	6.8 Nm	47.5 Nm	420 in-lbs	0.375 in	0.5 in	0.375 in
3M 2178-L/S-CSB-SMC-BRKT														Strain Relief Bracket	2178 Series Fiber Optic Splice Enclosures
3M 2178-XSB-EG-0T	14.57 in	370 mm	External Ground, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-XSB	14.57 in	370 mm	2 Ground Plugs, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-LS-2172	21.89 in	556 mm	2 Ground Plugs, 2172 Strength Member Clamp, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-XL/XSB-FR-2PG-0.60			Flame Retardant											Grommet		2 pcs per Pkg
3M 2178-S+81	21.89 in	556 mm	2 Ground Plugs, 2181 Cable Addition Kit, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-MLS	21.89 in	556 mm	2 Ground Plugs, External Ground Isolation, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket
3M 2178-S	21.89 in	556 mm	2 Ground Plugs, Fiber Optic Splices	Enclosure System, Installed Sealing Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 20.14

General part information

Strain Relief Bracket For 2178 Series Fiber Optic Splice Enclosures

Technical documentation and resources

No documents available
