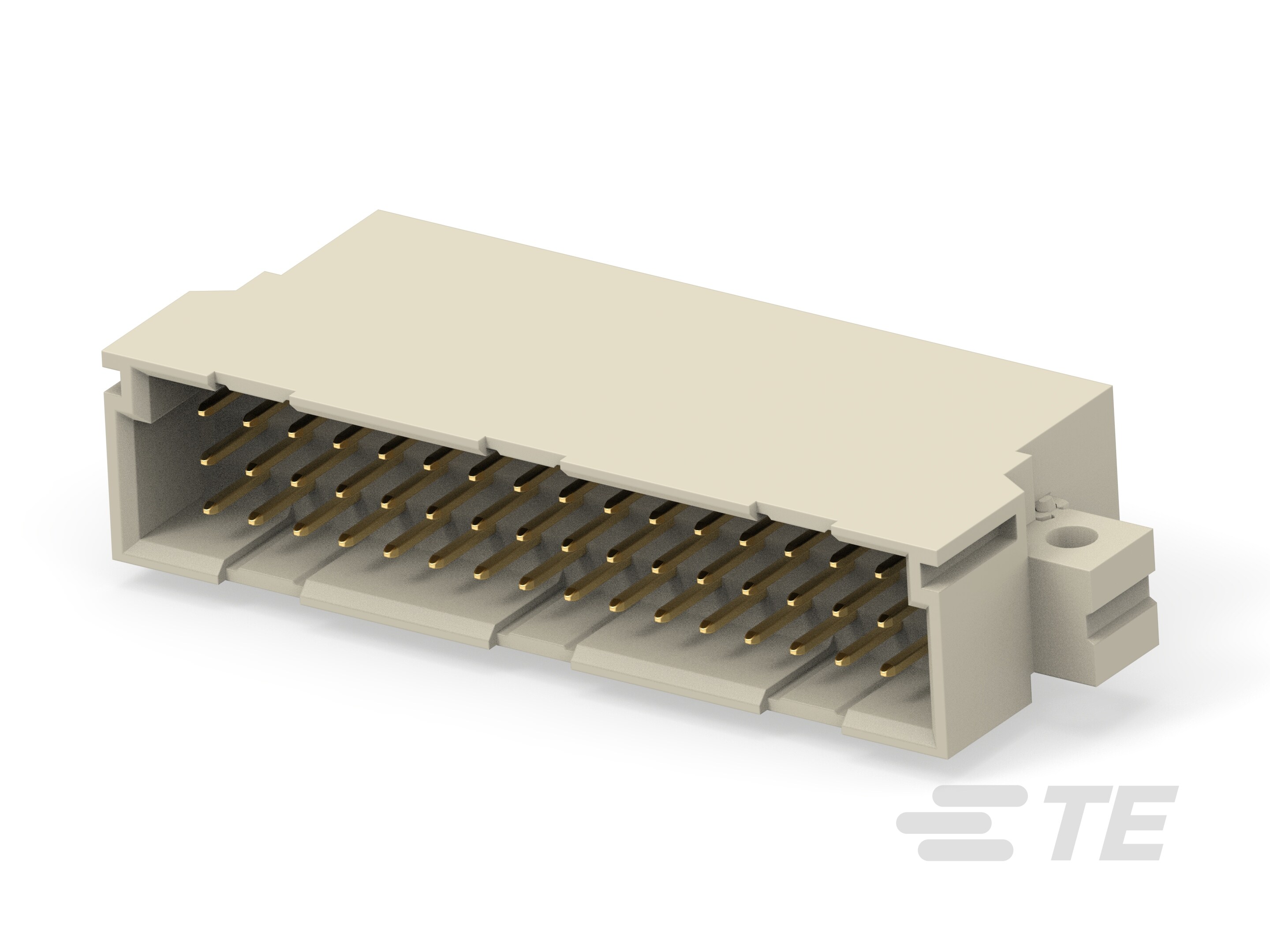

354329-E
ActiveTE Connectivity AMP Connectors
CONN BACKPLANE M 48 POS 2.54MM PRESS FIT RA THRU-HOLE
354329-E
ActiveTE Connectivity AMP Connectors
CONN BACKPLANE M 48 POS 2.54MM PRESS FIT RA THRU-HOLE
Description
General part information
- Series
Plug, Board-to-Board, 48 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 16 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 354329-E |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | C/2 (1/2 C) |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
