ActivePCB, EUROCARD, PRE-ETCHED, EPOXY GLASS COMPOSITE, 1.57MM, 100MMX160MM
4614
ActivePCB, EUROCARD, PRE-ETCHED, EPOXY GLASS COMPOSITE, 1.57MM, 100MMX160MM
Description
General part information
4614

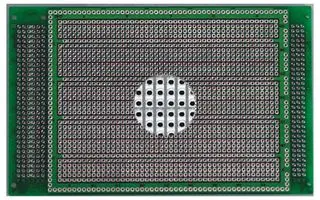

The 4614 is a 3U x 160mm Eurocard Prototyping Board made of FR4 epoxy glass (MIL - P13949 type Gf) with green solder mask. This plated-thru holes board features 3-hole solder pad pattern on both side which helps to interconnecting multiple component leads, back-to-back interleaved buses on both sides and DIN RE96MWR 96 pin connector. This VECTORBORD® CIRCBORD™ prototyping board comes with 1.0668mm diameter holes, 2.54 x 2.54mm grid and T44, 46, 49, 68 wire-wrap terminals. The board is capable to fit 20 16-pin DIP circuits.
Technical Specifications
Parameters and characteristics for this part
| Specification | 4614 |
|---|---|
| Board Thickness | 0.062 in |
| Circuit Pattern | Hole Pad (Both Sides) |
| Circuit Pattern Hole Count | 3 |
| Hole Diameter | 0.042 in |
| Pitch | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Hard Metric, Plugboard |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 3.94 in |
