Description
General part information

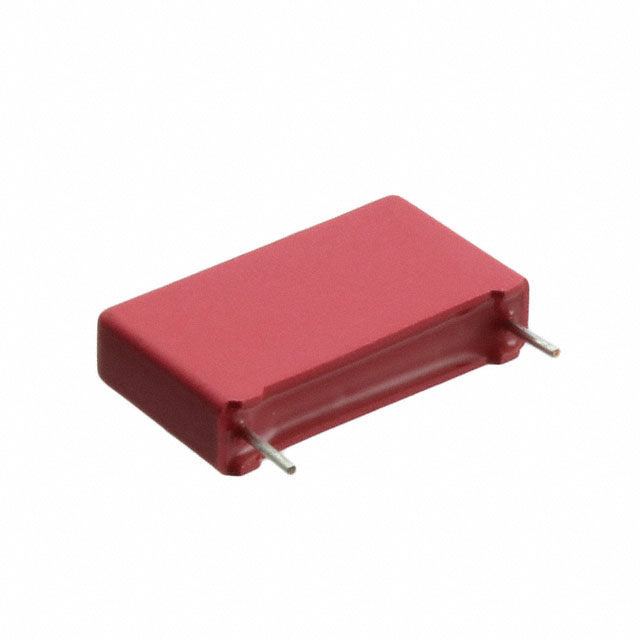

MKP1F031505B00JSSD
0.15 µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP1F031505B00JSSD |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.591 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 180 V |
| Voltage Rating - DC | 250 VDC |
