BZW50-68B - R-6 Axial Series

BZW50-68B

Active
STMicroelectronics

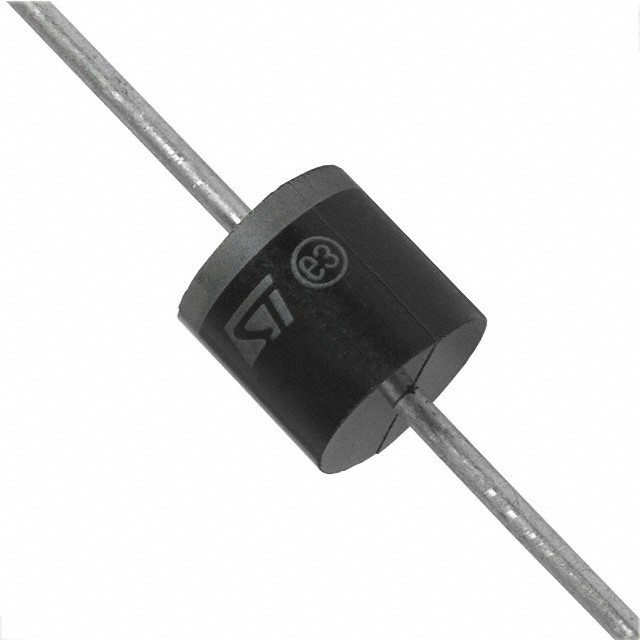

TVS DIODE, TRANSIL BZW50 SERIES, BIDIRECTIONAL, 68 V, 121 V, AXIAL LEADED, 2 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN316AN319+16
BZW50-68B - R-6 Axial Series

BZW50-68B

Active
STMicroelectronics

TVS DIODE, TRANSIL BZW50 SERIES, BIDIRECTIONAL, 68 V, 121 V, AXIAL LEADED, 2 PINS

Deep-Dive with AI

DocumentsAN316AN319+16

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationBZW50-68BBZW50-68B Series
--
ApplicationsGeneral PurposeGeneral Purpose
Bidirectional Channels [custom]11
Capacitance @ Frequency1500 pF1500 pF
Current - Peak Pulse (10/1000µs)382 A382 A
Mounting TypeThrough HoleThrough Hole
Package / CaseR-6, AxialR-6, Axial
Power - Peak Pulse5000 W5000 W
Power - Peak Pulse5 kW5 kW
Power Line ProtectionFalseFalse
Supplier Device PackageR-6R-6
TypeZenerZener
Voltage - Breakdown (Min) [Min]75.6 V75.6 V
Voltage - Clamping (Max) @ Ipp [Max]157 V157 V
Voltage - Reverse Standoff (Typ)68 V68 V
