L2C2-27801205E1300

Obsolete

Lumileds

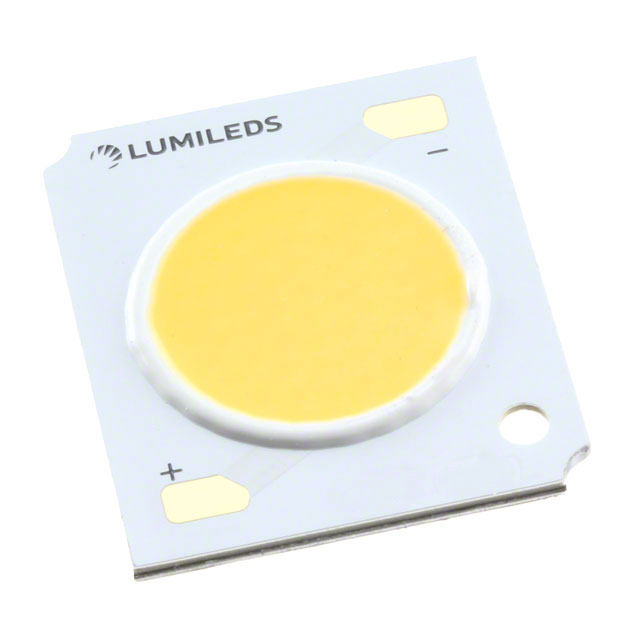

LED UNI-COLOR WHITE 2565LM 2700K CHIP LED 2-PIN SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L2C2-27801205E1300

Obsolete

Lumileds

LED UNI-COLOR WHITE 2565LM 2700K CHIP LED 2-PIN SMD TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 21.23
		10	$ 16.01

Description

General part information

L2C2 Series

Highest flux densities with industry’s smallest LES, 6.5mm

R9 between 80 and 90 for vibrant reds

3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L2C2-27801205E1300	L2C2 Series

	-	-
CCT (K)	2700 K	2700 - 5700 K
Color	White, Warm	White, Warm, Cool, Neutral
Configuration	Rectangle	Rectangle, Square
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	1.2 A	1.2 - 900 A
Current - Test	600 mA	1.2 - 900 mA
Height [z]	1.5 mm	1.5 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	13 mm	9 - 18.5 mm
Lumens/Watt @ Current - Test	122 lm/W	111 - 158 lm/W
Luminous Flux @ Current/Temperature	2565 lm	768 - 5130 lm
Size / Dimension [x]	20 mm	16 - 28 mm
Size / Dimension [y]	24 mm	19 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	35 V	34.5 - 35 V

L2C2 Series

LED COB LUXEON WM WHT RECT 3500K

Part	Type	Luminous Flux @ Current/Temperature	Current - Max [Max]	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Color	Lens Type	Current - Test	Viewing Angle	Height [z]	Temperature - Test	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Configuration
Lumileds L2C2-35901205E1300	Chip On Board (COB)	2400 lm	1.2 A	3500 K	114 lm/W	20 mm	24 mm	Warm, White	Flat	600 mA	115 °	1.5 mm	85 °C	13 mm	35 V	90	Rectangle
Lumileds L2C2-30901205E1300	Chip On Board (COB)	2322 lm	1.2 A	3000 K	111 lm/W	20 mm	24 mm	Warm, White	Flat	600 mA	115 °	1.5 mm	85 °C	13 mm	35 V	90	Rectangle
Lumileds L2C2-57701205E1300	Chip On Board (COB)	3051 lm	1.2 A	5700 K	145 lm/W	20 mm	24 mm	Cool, White	Flat	600 mA	115 °	1.5 mm	85 °C	13 mm	35 V	70	Rectangle
Lumileds L2C2-30901204E1300	Chip On Board (COB)	1742 lm	900 mA	3000 K	111 lm/W	20 mm	24 mm	Warm, White	Flat	450 mA	115 °	1.5 mm	85 °C	13 mm	35 V	90	Rectangle
Lumileds L2C2-40701202E0900	Chip On Board (COB)	1092 lm	400 mA	4000 K	158 lm/W	16 mm	19 mm	Neutral, White	Flat	200 mA	115 °	1.5 mm	85 °C	9 mm	34.5 V	70	Rectangle
Lumileds L2C2-35801204E1300	Chip On Board (COB)	2106 lm	900 mA	3500 K		20 mm	24 mm	Warm, White	Flat	450 mA	115 °	1.5 mm	85 °C	13 mm	35 V	80	Rectangle
Lumileds L2C2-27801204E1300	Chip On Board (COB)	1924 lm	900 mA	2700 K	122 lm/W	20 mm	24 mm	Warm, White	Flat	450 mA	115 °	1.5 mm	85 °C	13 mm	35 V	80	Rectangle
Lumileds L2C2-30801204E1300	Chip On Board (COB)	2025 lm	900 mA	3000 K	129 lm/W	20 mm	24 mm	Warm, White	Flat	450 mA	115 °	1.5 mm	85 °C	13 mm	35 V	80	Rectangle
Lumileds L2C2-27801203E0900	Chip On Board (COB)	1283 lm	600 mA	2700 K		16 mm	19 mm	Warm, White	Flat	300 mA	115 °	1.5 mm	85 °C	9 mm	34.5 V	80	Rectangle
Lumileds L2C2-40801208E1500	Chip On Board (COB)	4354 lm	1.8 A	4000 K	138 lm/W	20 mm	24 mm	Neutral, White	Flat	900 mA	115 °	1.5 mm	85 °C	15 mm	35 V	80	Rectangle
