2950116

Active

Phoenix Contact

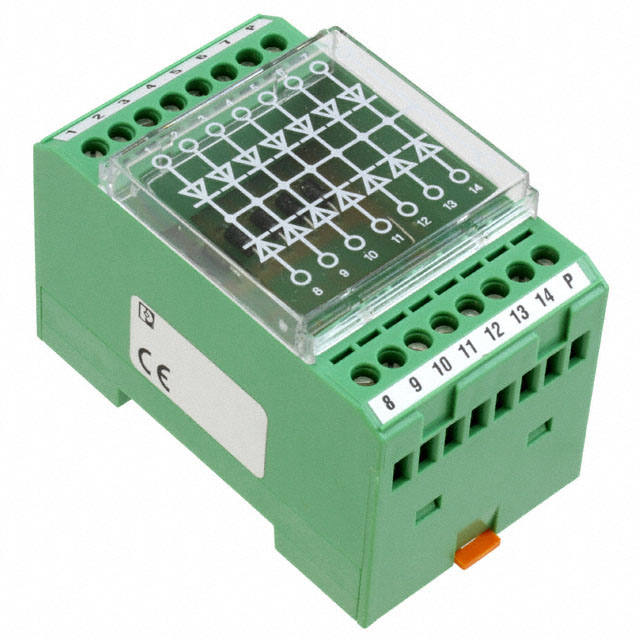

DIODE MODULE GP 1300V 700MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V 700MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2950116	29501 Series

Current - Average Rectified (Io) (per Diode)	700 mA	700 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Configuration	14 Common Cathode	14 Common Anode, 14 Common Cathode, 8 Independent, 7 Pair Common Cathode
Mounting Type	DIN Rail	DIN Rail, DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Housed Axial	Housed Axial, Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1300 V

DIODE BLOCK, 14DIODE, 0.7A, COMMON ANODE ROHS COMPLIANT: YES

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Speed	Speed	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Current - Average Rectified (Io) (per Diode)
Phoenix Contact 2950129	DIN Rail	1300 V	14 Common Anode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950116	DIN Rail	1300 V	14 Common Cathode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950103	DIN Rail	1300 V	8 Independent	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950132	DIN Rail/Channel	1300 V	7 Pair Common Cathode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Module	Standard	700 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 14 Common Cathode 1300 V 700mA DIN Rail Housed Axial
