TRH100A240-11E12 VI

Active

Cincon Electronics Co. LTD

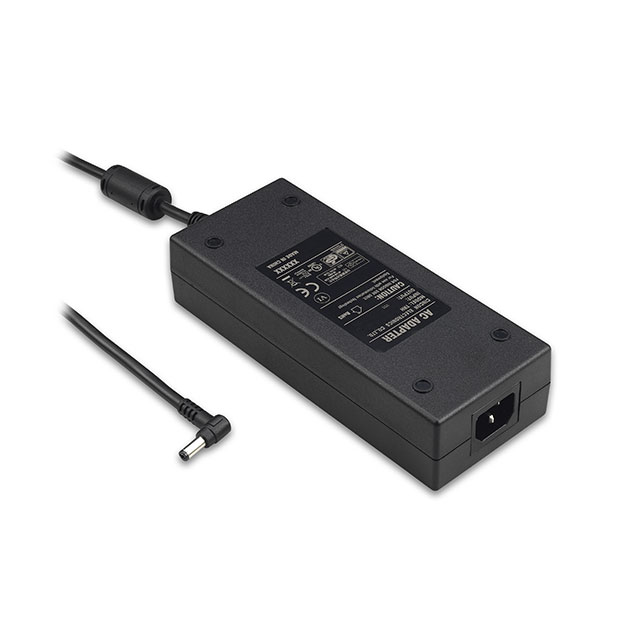

AC/DC DESKTOP ADAPTER 24V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRH100A240-11E12 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 24V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRH100A240-11E12 VI

Applications	ITE (Commercial)
Approval Agency	CE, PSE, FCC, cULus, NEMKO, TUV
Cord Length	1.22 m
Cord Length	48 in
Current - Output (Max) [Max]	4.17 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	100 W
Region Utilized	International
Size / Dimension [x]	5.59 in
Size / Dimension [x]	142 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	58 mm
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V
Weight	1.069 lbs
Weight	485 g

TRH100 Series

Part	Polarization	Weight	Weight	Input Type	Current - Output (Max) [Max]	Voltage - Output	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Cord Length	Cord Length	Form	Input Connector	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]
Cincon Electronics Co. LTD TRH100A180-11E12 VI	Positive Center	1.069 lbs	485 g	Cord	5.56 A	18 V	CE cULus FCC NEMKO PSE TUV	70 °C	-30 ░C	CoC Tier 2 Level VI	ITE (Commercial)	International	37 mm	2.28 in	58 mm	5.59 in	1.46 "	142 mm	100 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	1.22 m	48 in	Desktop (Class I)	IEC 320-C14	150 mW	90 VAC	264 VAC
Cincon Electronics Co. LTD TRH100A360-11E12 VI	Positive Center	1.069 lbs	485 g	Cord	2.78 A	36 V	CE cULus FCC NEMKO PSE TUV	70 °C	-30 ░C	CoC Tier 2 Level VI	ITE (Commercial)	International	37 mm	2.28 in	58 mm	5.59 in	1.46 "	142 mm	100 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	1.22 m	48 in	Desktop (Class I)	IEC 320-C14	150 mW	90 VAC	264 VAC
Cincon Electronics Co. LTD TRH100A240-11E12 VI	Positive Center	1.069 lbs	485 g	Cord	4.17 A	24 V	CE cULus FCC NEMKO PSE TUV	70 °C	-30 ░C	CoC Tier 2 Level VI	ITE (Commercial)	International	37 mm	2.28 in	58 mm	5.59 in	1.46 "	142 mm	100 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	1.22 m	48 in	Desktop (Class I)	IEC 320-C14	150 mW	90 VAC	264 VAC
Cincon Electronics Co. LTD TRH100A120-11E12 VI	Positive Center	1.069 lbs	485 g	Cord		12 V	CE cULus FCC NEMKO PSE TUV	70 °C	-30 ░C	CoC Tier 2 Level VI	ITE (Commercial)	International	37 mm	2.28 in	58 mm	5.59 in	1.46 "	142 mm	100 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	1.22 m	48 in	Desktop (Class I)	IEC 320-C14	150 mW	90 VAC	264 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.18

Description

General part information

TRH100 Series

24V 100 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
